Sting Balance R/P/Y

GD&T drawings

36 ANSI B sheets, generated from the CAD solids: five assembly sheets with parts lists (100-500) and 31 part sheets. Series 0xx: balance, puck, sting, printed pod (an interface and inspection sheet). 2xx: roll spindle. 3xx: calibration hardware (308-310 are the pulley uprights, axles and pulleys). 4xx: motorized pitch sector. 5xx: yaw carriage (preliminary). The part views are true hidden-line views, hatched sections, ASME Y14.5-2018 feature control frames and datums. Download the full set (PDF).

REV A, AI-generated: the CHECKED and APPROVED blocks are blank on purpose. Have a qualified engineer or the machine shop review fits, tolerances and GD&T, and confirm the vendor hole patterns (NMRV030) against the purchased parts, before release.
Yaw carriage sheets (5xx) are PRELIMINARY. Every dimension marked TO CONFIRM depends on the downstream bay: the floor height and width, the space under the test-section exit (the carriage plate's front edge reaches 2.3 in under it at ±15° yaw), the rail angular extents and the floor-bolt holes. The wheel-stud radii also depend on the groove depth of the purchased V-wheels. Measure the tunnel and check the wheel vendor drawing before machining.
Drawing WT-6C-100

WT-6C-100

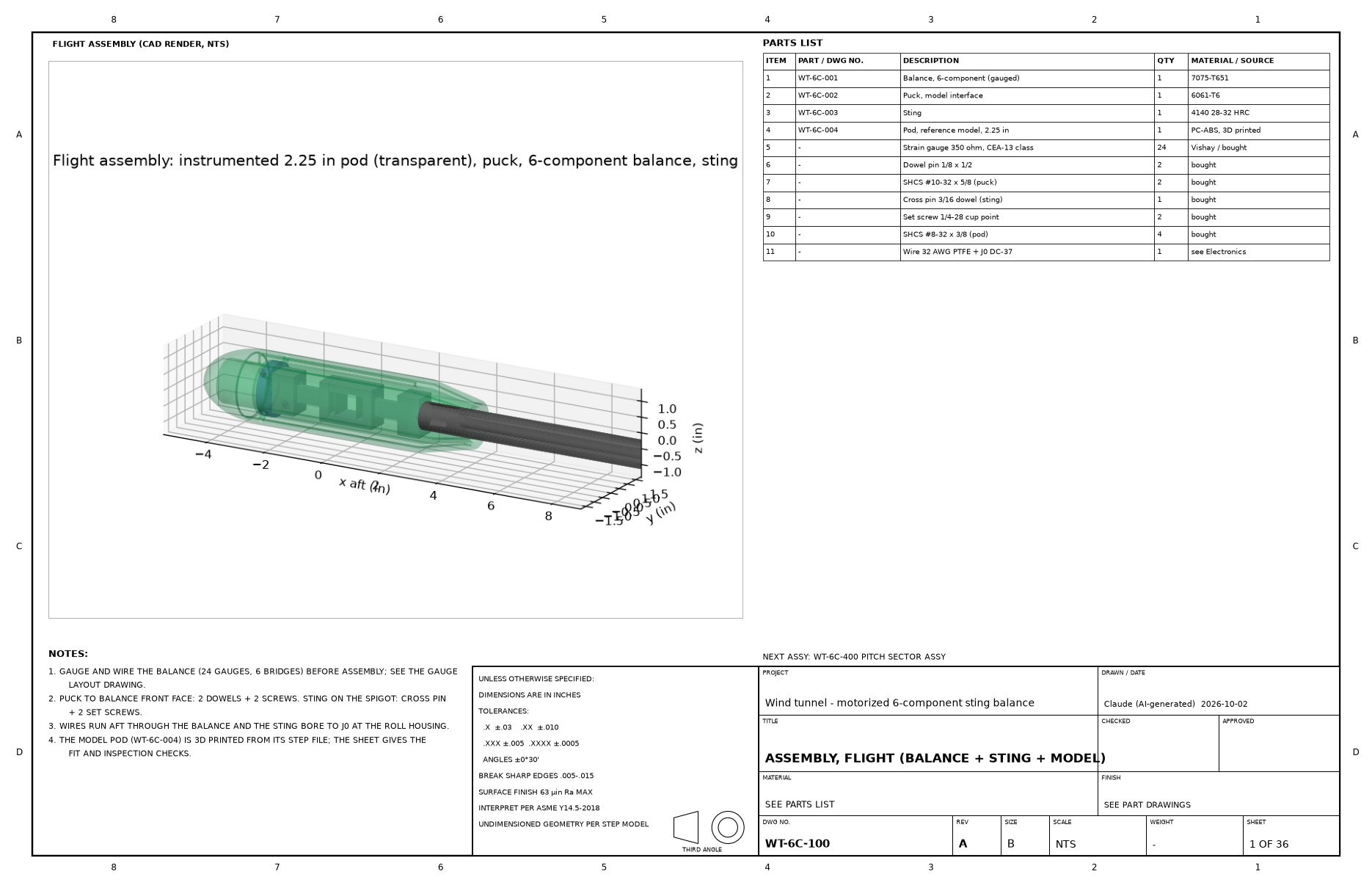

Assembly, flight (balance + sting + model)
parts list
PDF · PNG
Drawing WT-6C-200

WT-6C-200

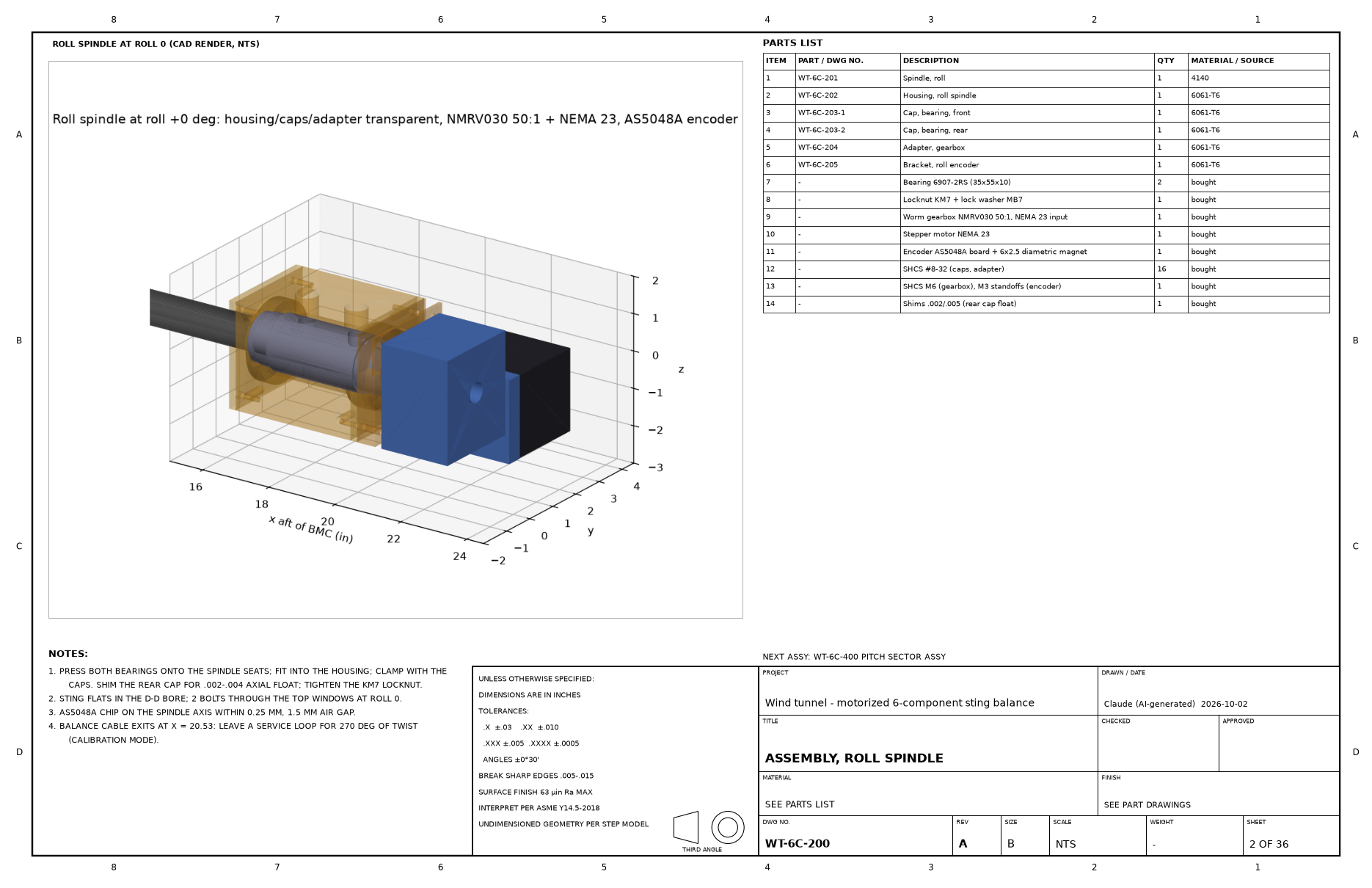

Assembly, roll spindle
parts list
PDF · PNG
Drawing WT-6C-300

WT-6C-300

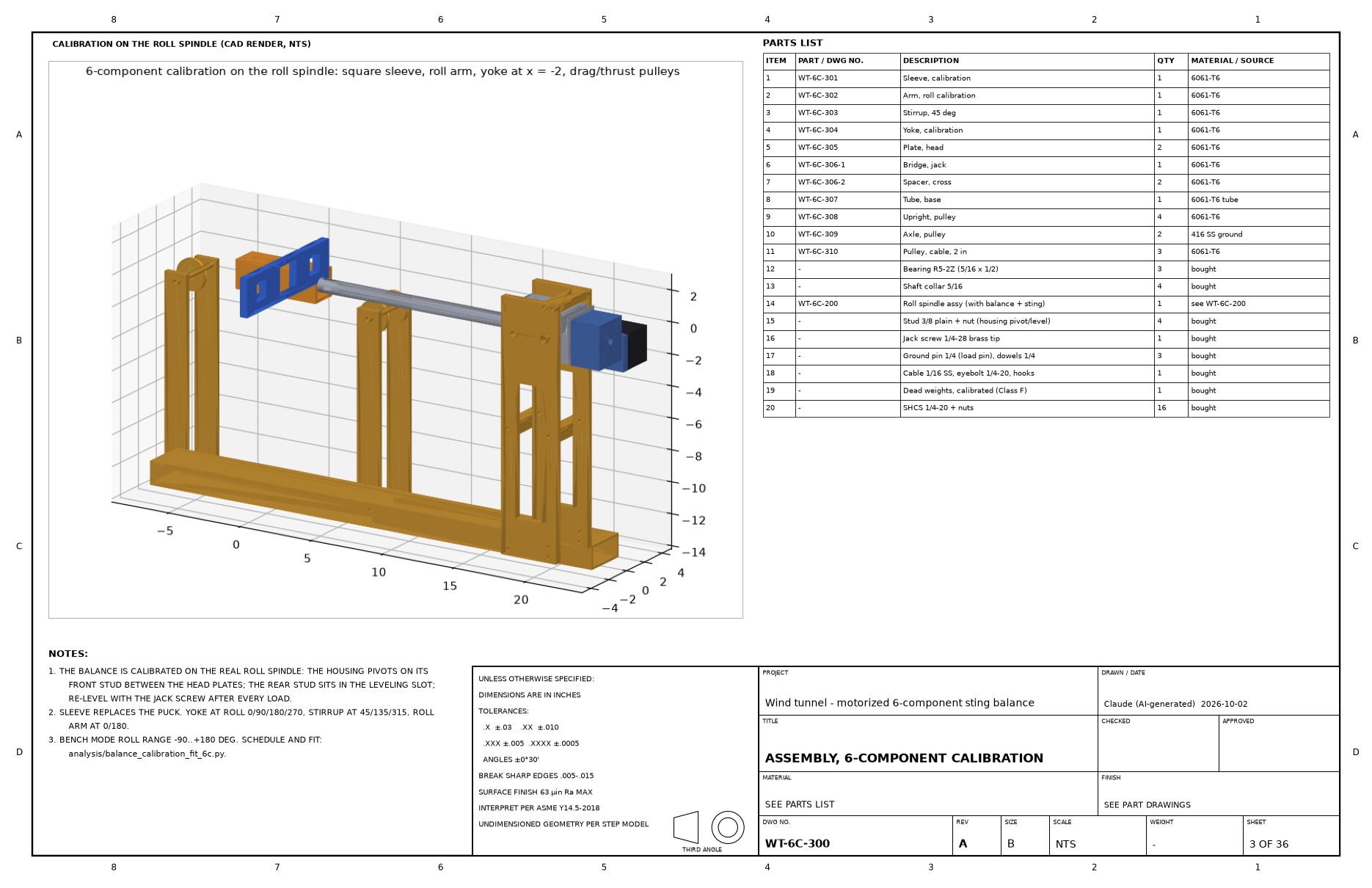

Assembly, 6-component calibration
parts list
PDF · PNG
Drawing WT-6C-400

WT-6C-400

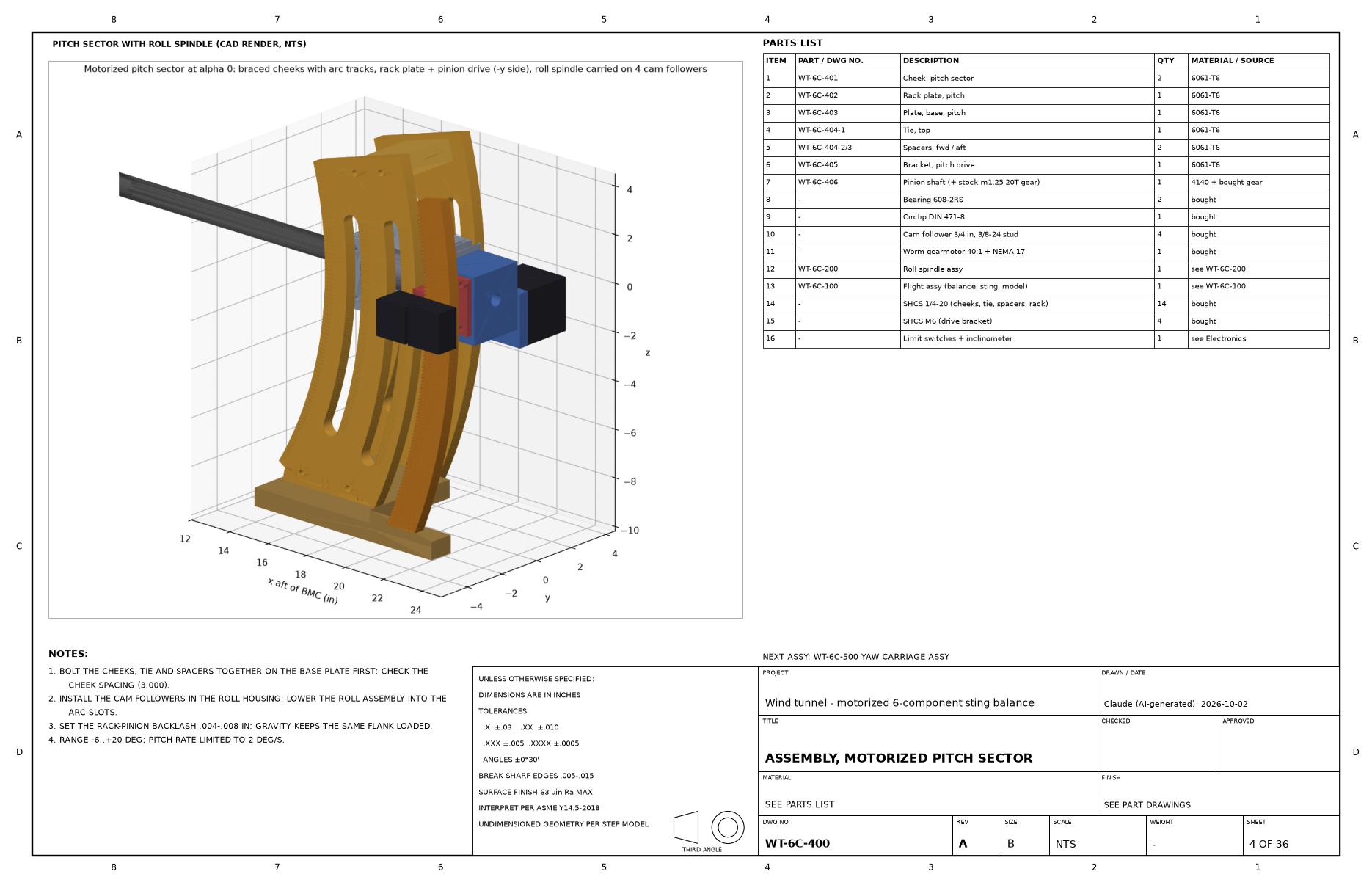

Assembly, motorized pitch sector
parts list
PDF · PNG
Drawing WT-6C-500

WT-6C-500

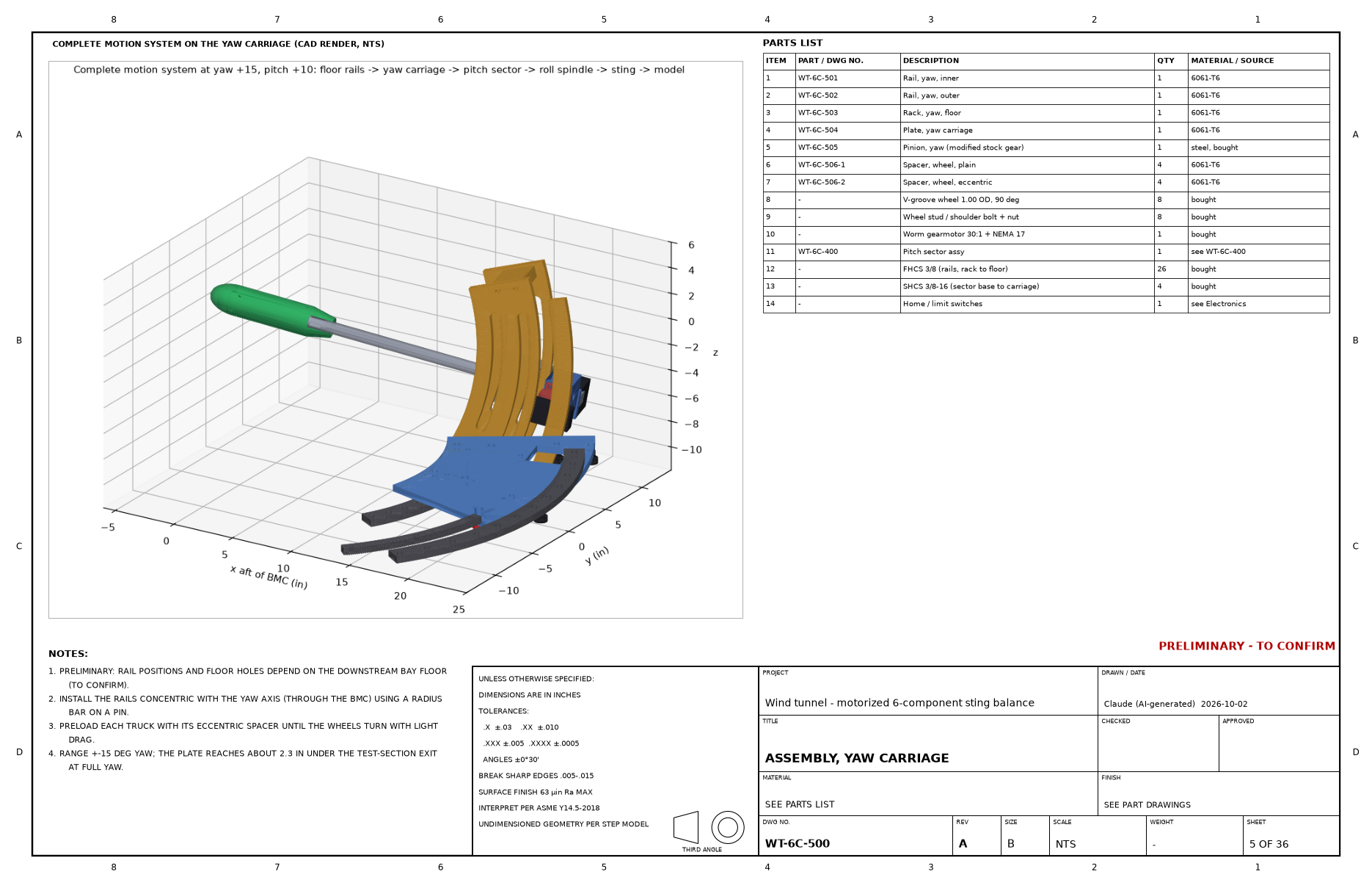

Assembly, yaw carriage (prelim.)
parts list
PDF · PNG
Drawing WT-6C-001

WT-6C-001

Balance, 6-component
7075-T651
PDF · PNG
Drawing WT-6C-002

WT-6C-002

Puck, model interface
6061-T6
PDF · PNG
Drawing WT-6C-003

WT-6C-003

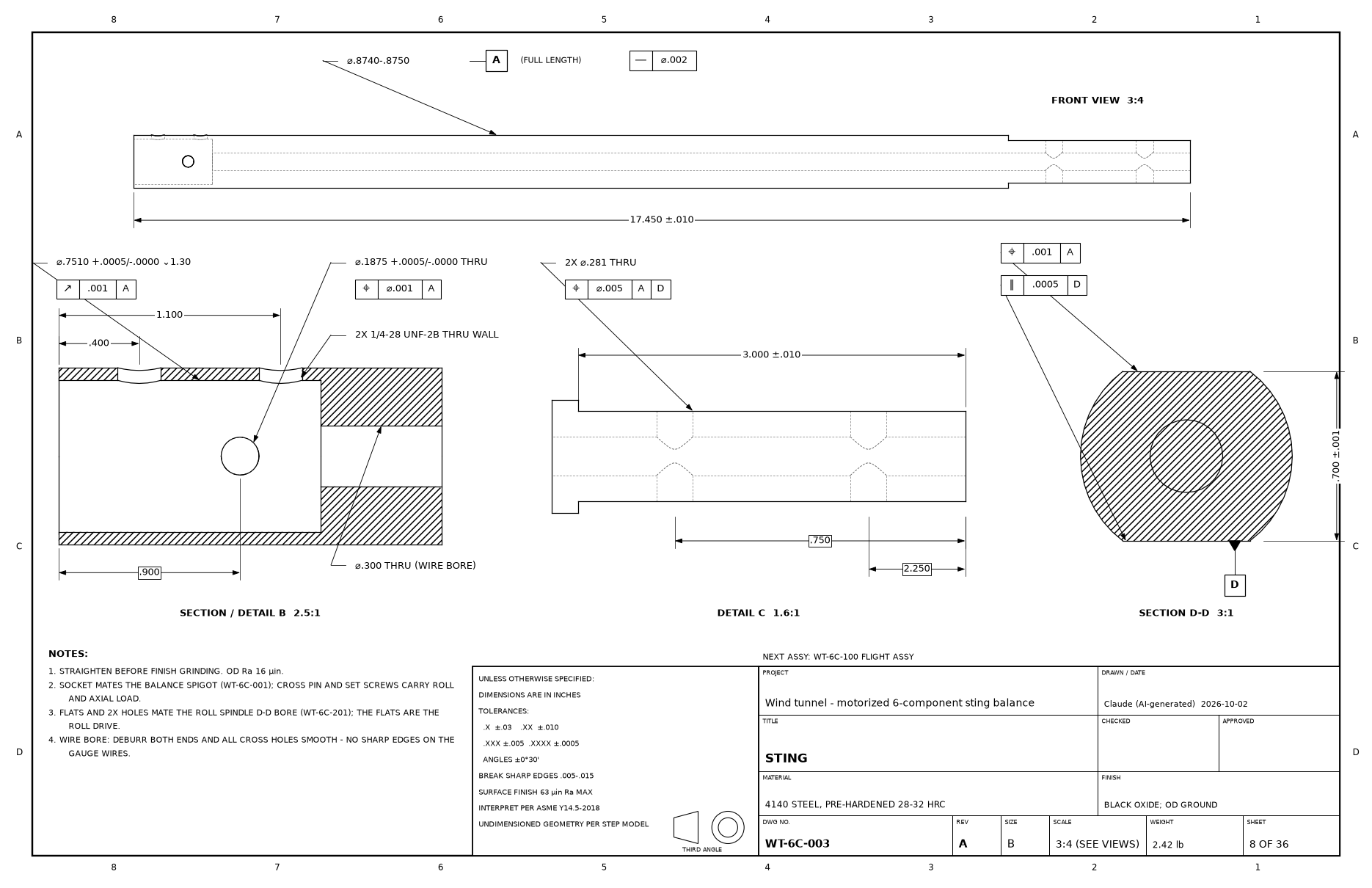

Sting
4140, 28-32 HRC
PDF · PNG
Drawing WT-6C-004

WT-6C-004

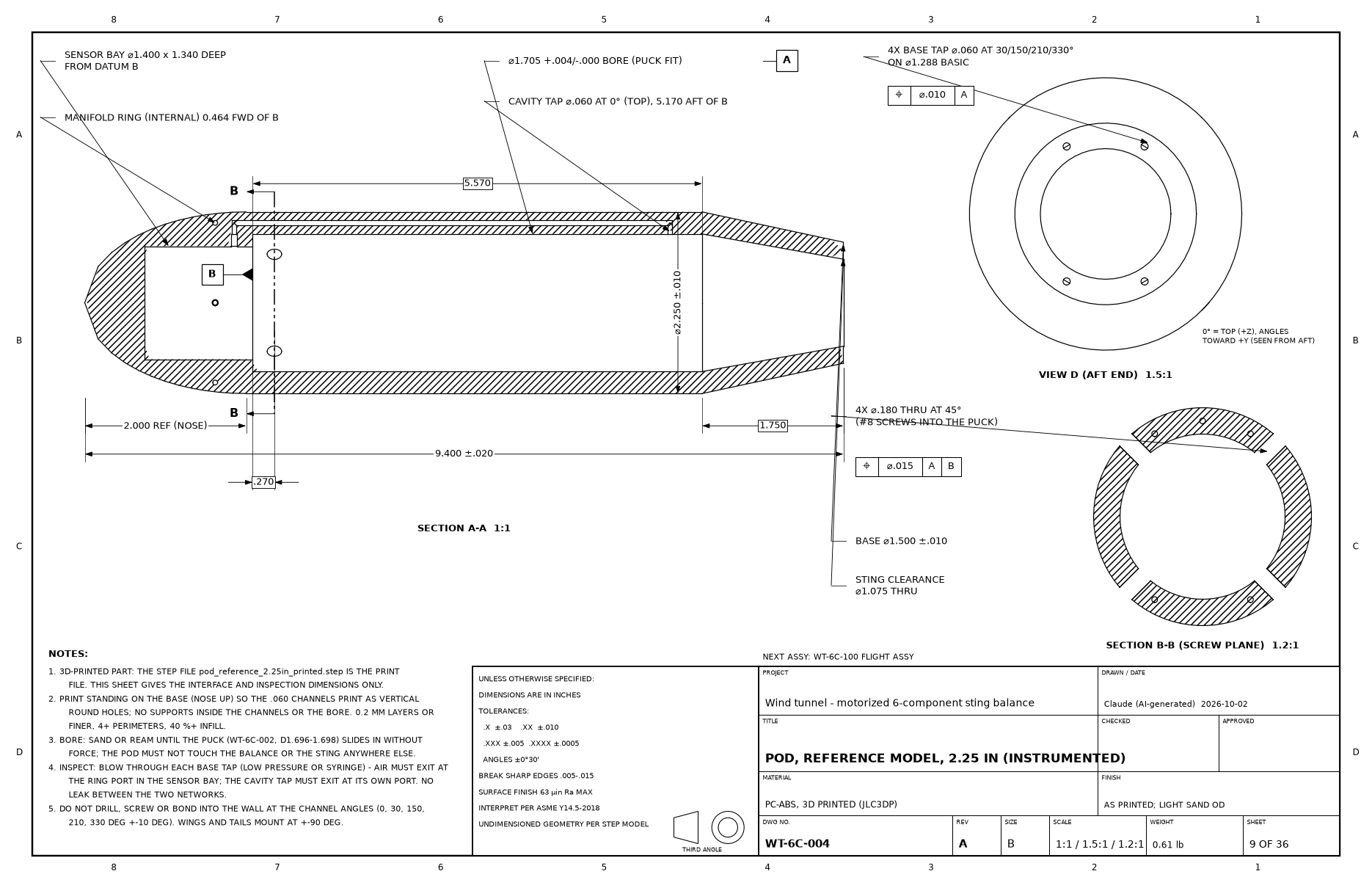

Pod, reference model, 2.25 in (3D printed)
PC-ABS (JLC3DP)
PDF · PNG
Drawing WT-6C-201

WT-6C-201

Spindle, roll
4140, 28-32 HRC
PDF · PNG
Drawing WT-6C-202

WT-6C-202

Housing, roll spindle
6061-T6
PDF · PNG
Drawing WT-6C-203

WT-6C-203

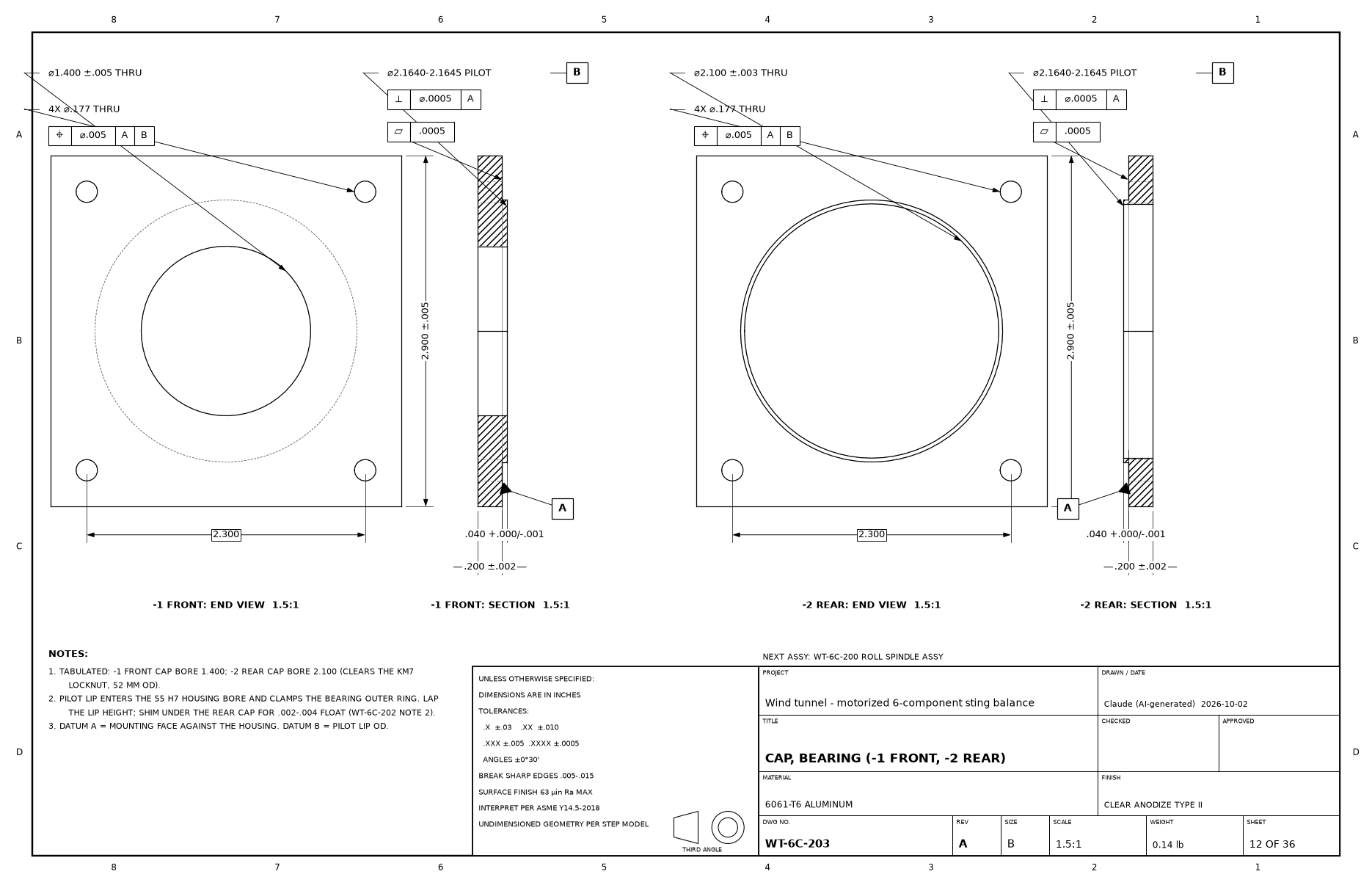

Caps, bearing (-1 front, -2 rear)
6061-T6
PDF · PNG
Drawing WT-6C-204

WT-6C-204

Adapter, gearbox
6061-T6
PDF · PNG
Drawing WT-6C-205

WT-6C-205

Bracket, roll encoder
6061-T6
PDF · PNG
Drawing WT-6C-301

WT-6C-301

Sleeve, calibration
6061-T6
PDF · PNG
Drawing WT-6C-302

WT-6C-302

Arm, roll calibration
6061-T6
PDF · PNG
Drawing WT-6C-303

WT-6C-303

Stirrup, 45° calibration
6061-T6
PDF · PNG

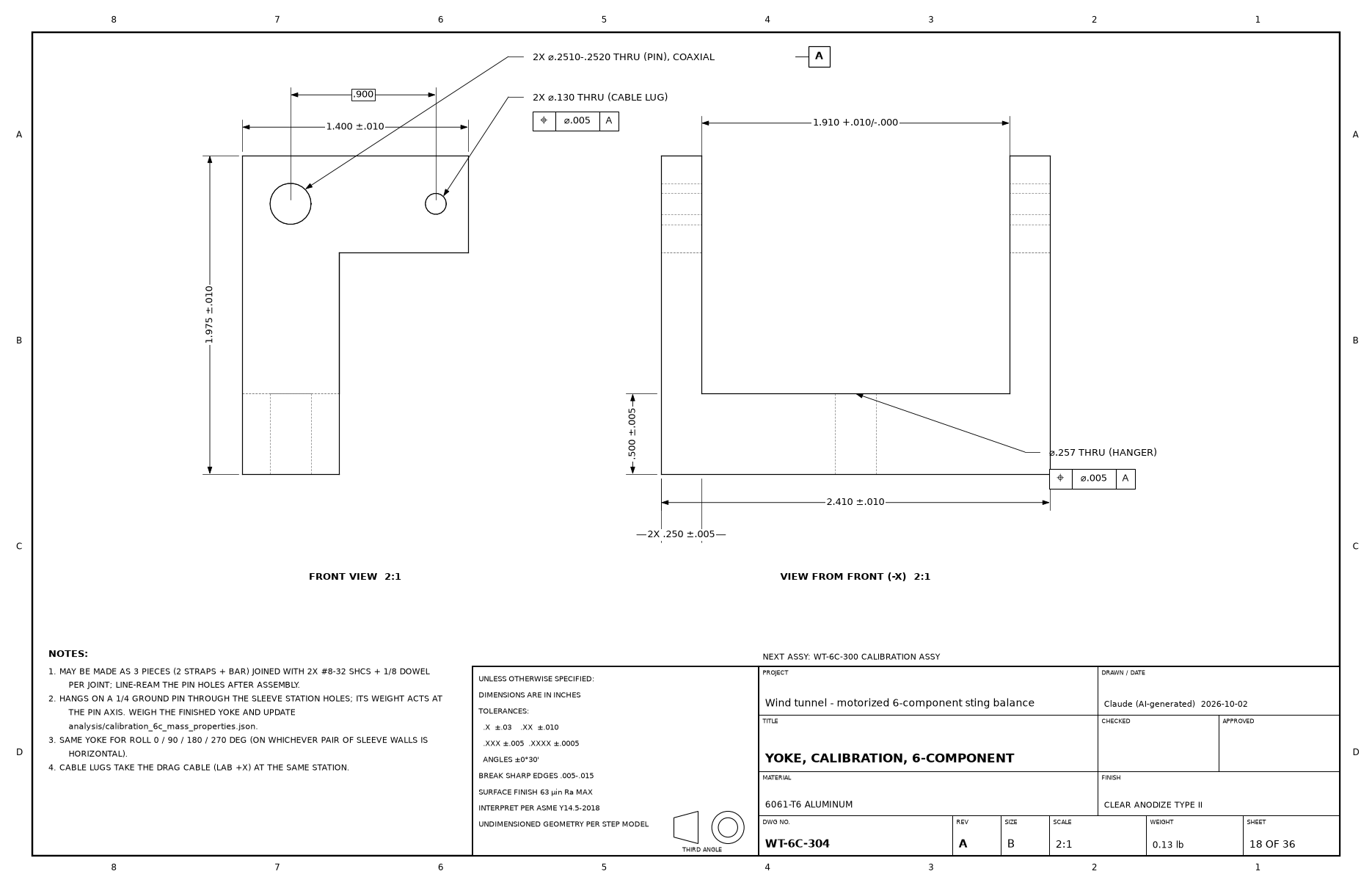

Drawing WT-6C-304

WT-6C-304

Yoke, calibration
6061-T6
PDF · PNG

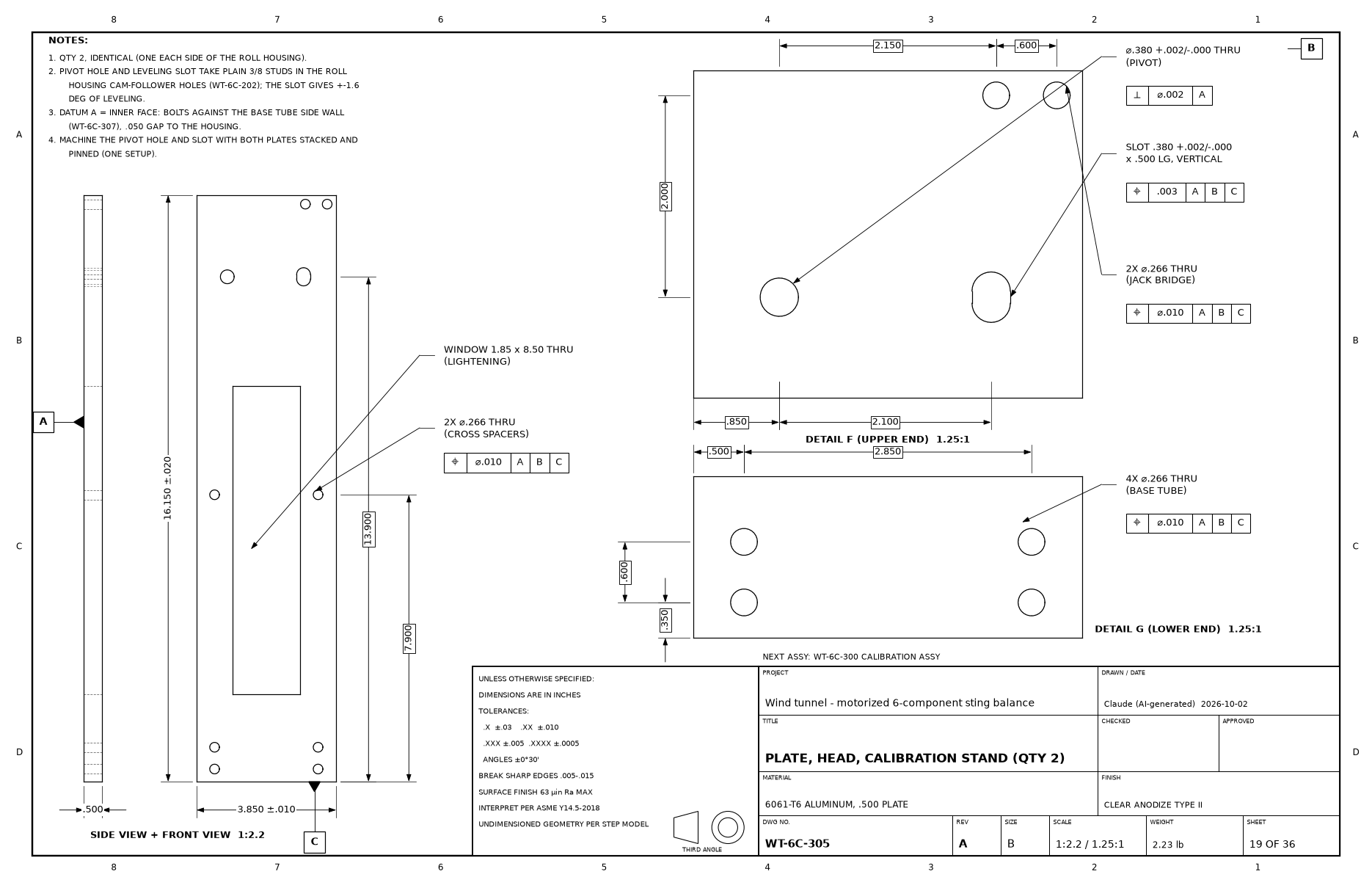

Drawing WT-6C-305

WT-6C-305

Plate, head, calibration stand (qty 2)
6061-T6
PDF · PNG
Drawing WT-6C-306

WT-6C-306

Jack bridge / cross spacer (qty 2)
6061-T6
PDF · PNG

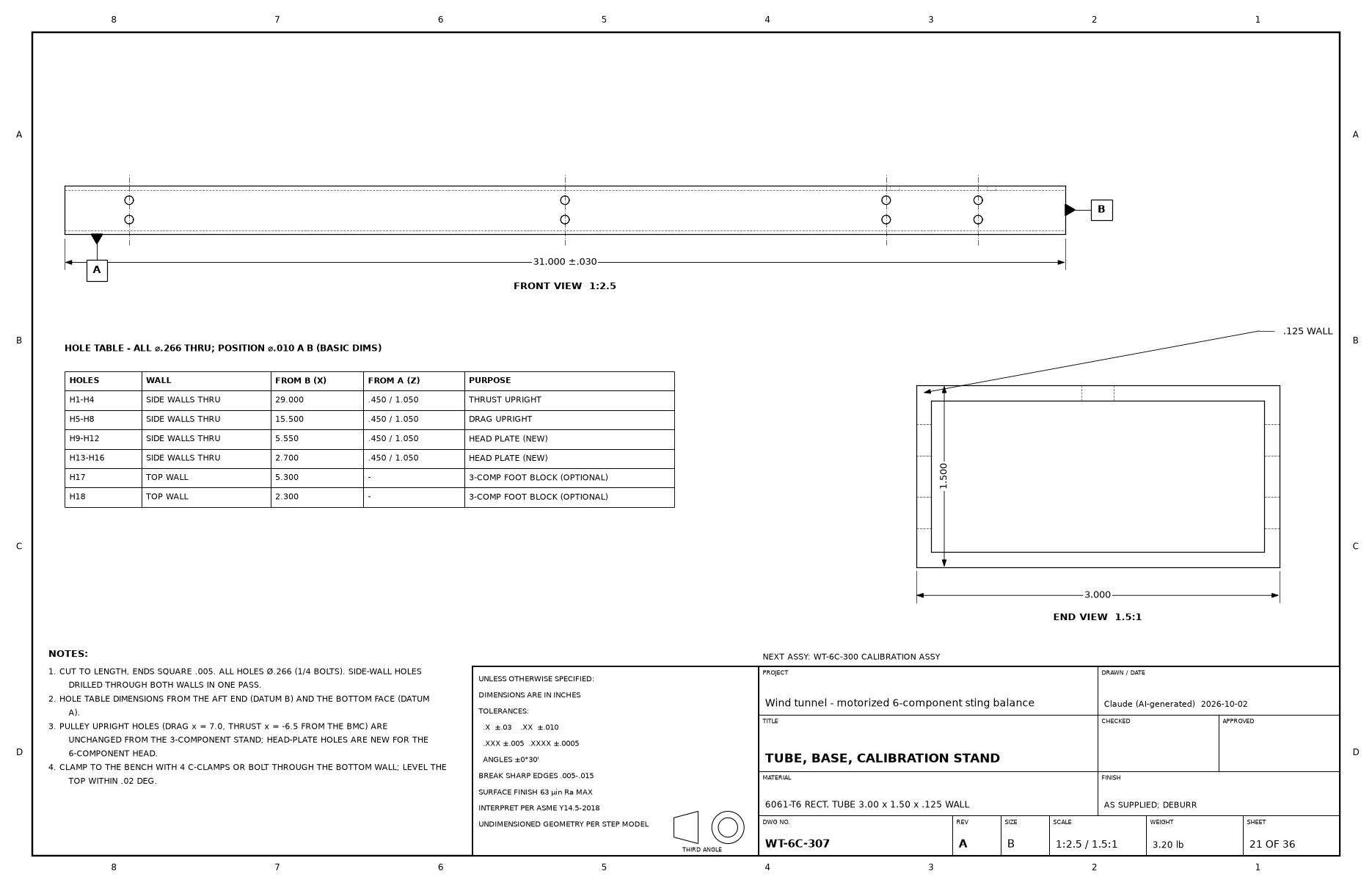

Drawing WT-6C-307

WT-6C-307

Tube, base, calibration stand
6061-T6 tube
PDF · PNG
Drawing WT-6C-308

WT-6C-308

Upright, pulley (qty 4)
6061-T6
PDF · PNG
Drawing WT-6C-309

WT-6C-309

Axle, pulley (qty 2)
416 SS ground rod
PDF · PNG
Drawing WT-6C-310

WT-6C-310

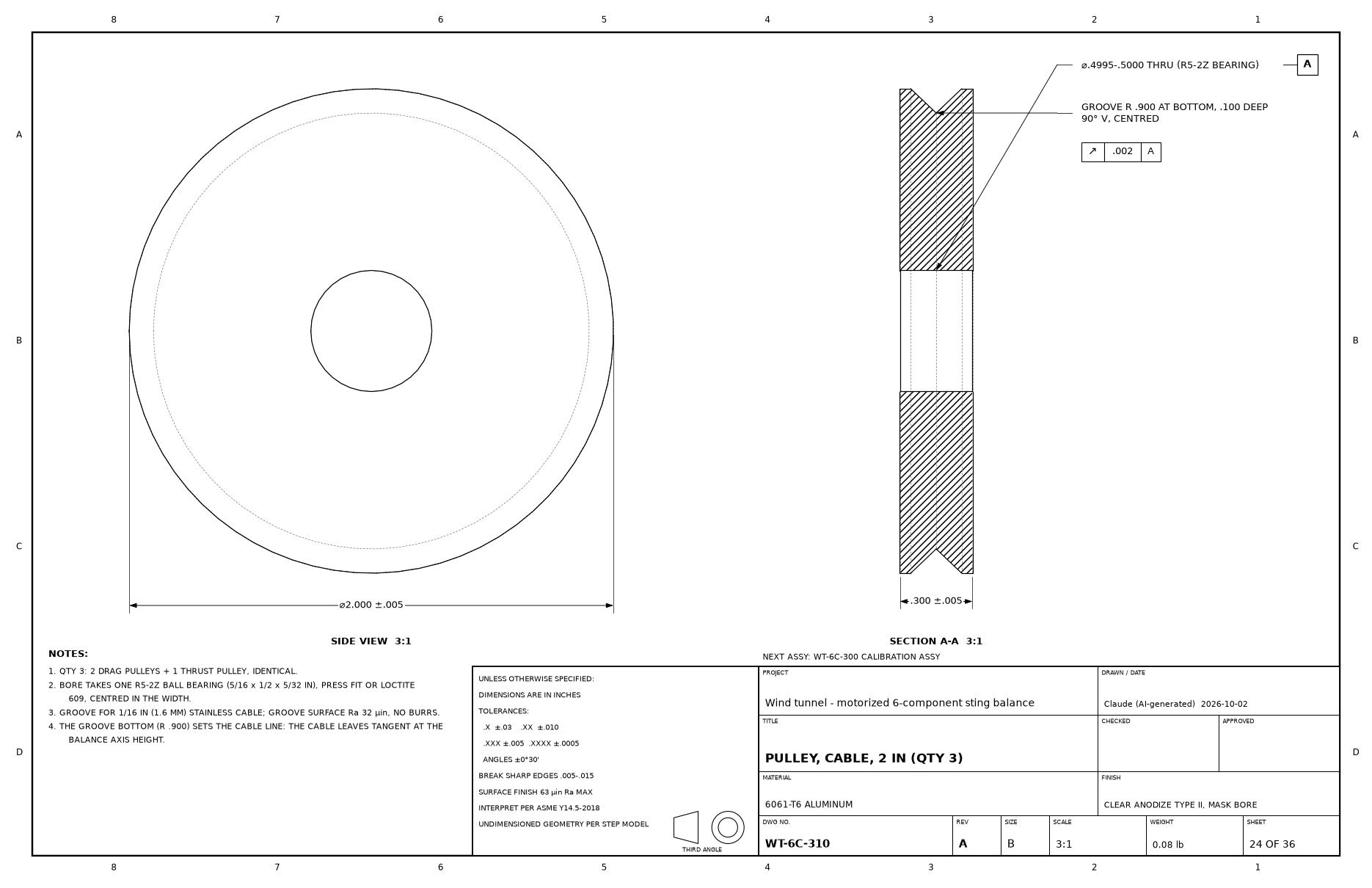

Pulley, cable, 2 in (qty 3)
6061-T6
PDF · PNG
Drawing WT-6C-401

WT-6C-401

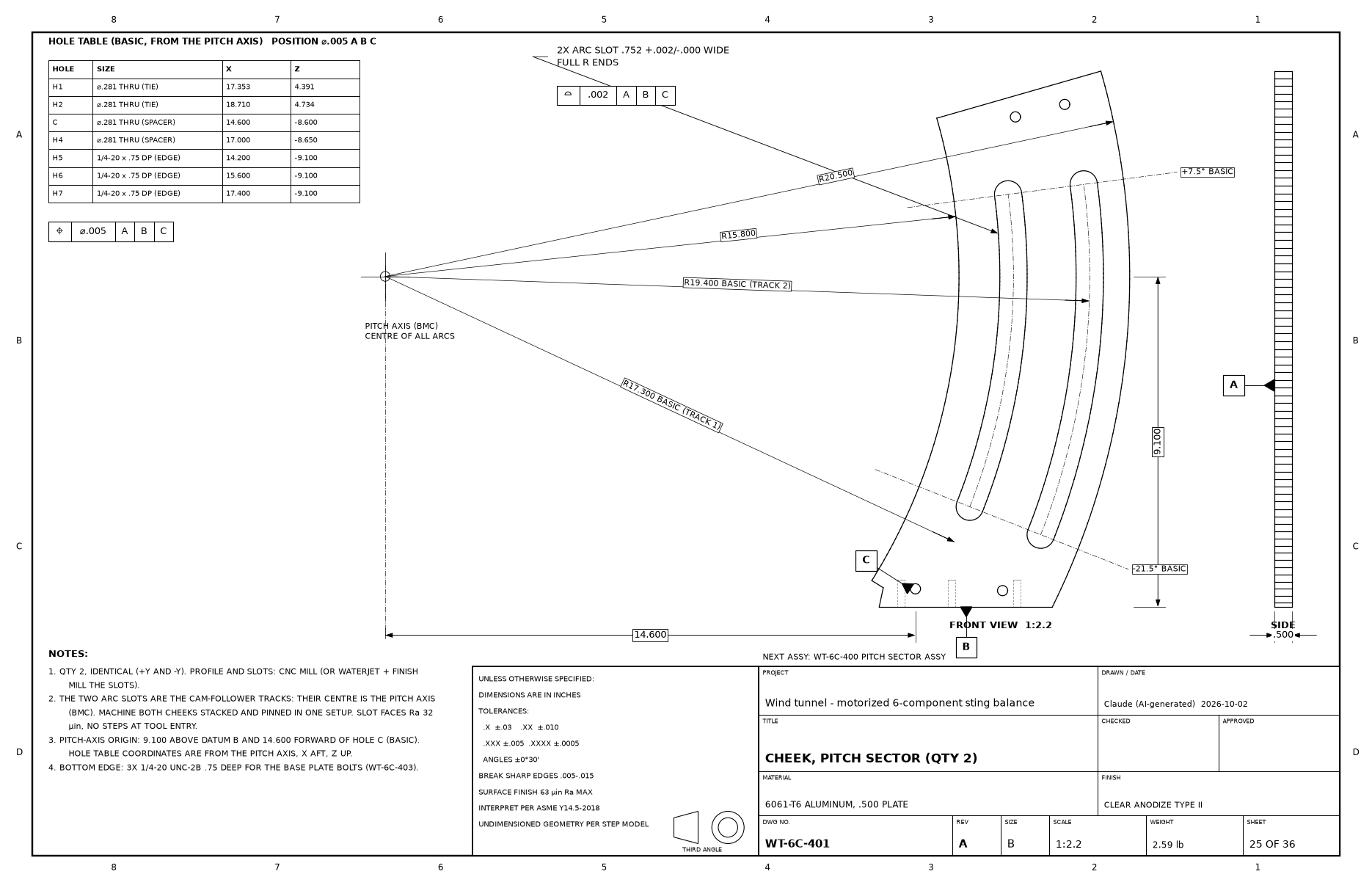

Cheek, pitch sector (qty 2)
6061-T6
PDF · PNG

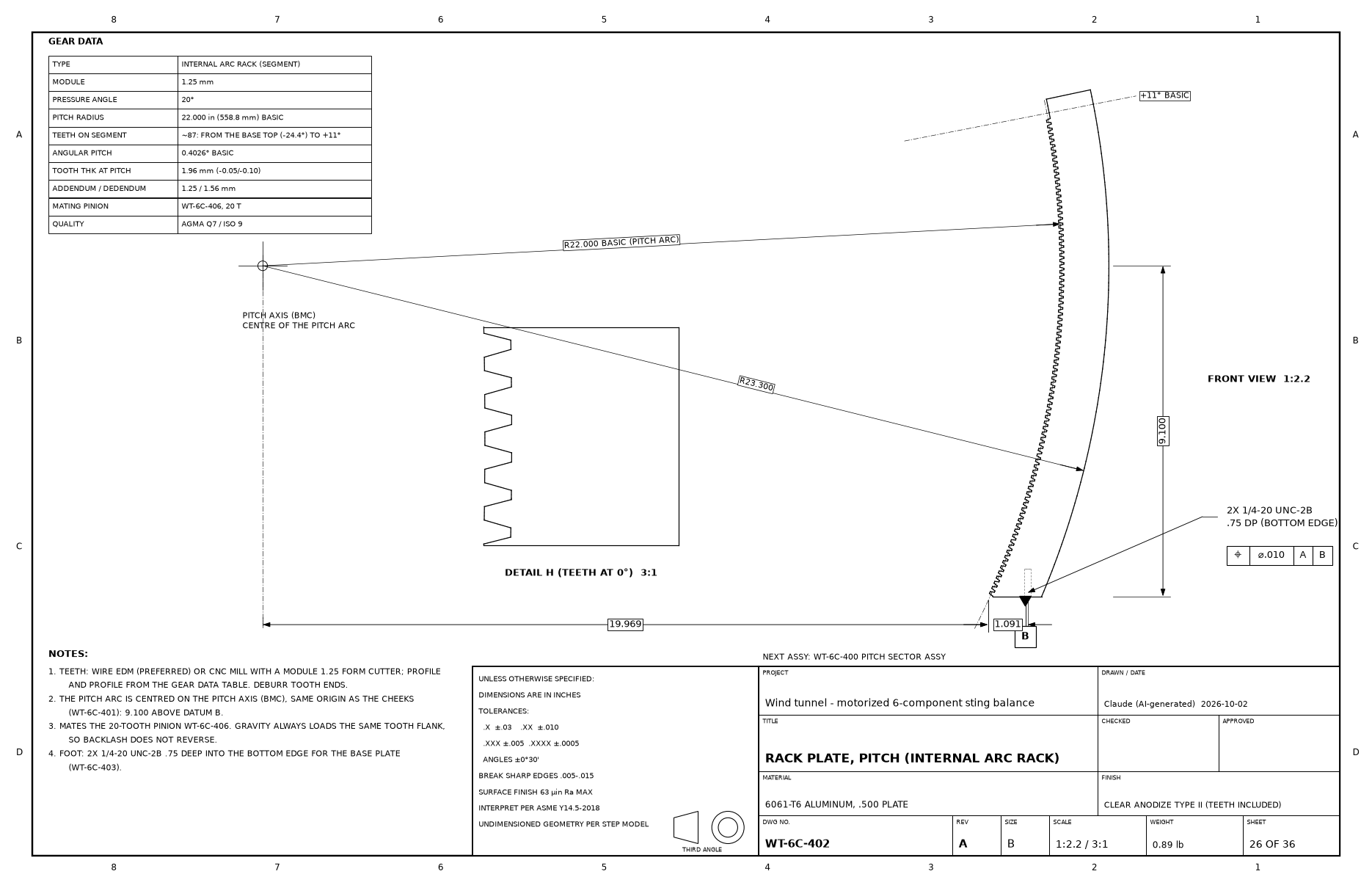

Drawing WT-6C-402

WT-6C-402

Rack plate, pitch (internal arc rack)
6061-T6
PDF · PNG
Drawing WT-6C-403

WT-6C-403

Plate, base, pitch sector
6061-T6
PDF · PNG
Drawing WT-6C-404

WT-6C-404

Top tie / spacers
6061-T6
PDF · PNG

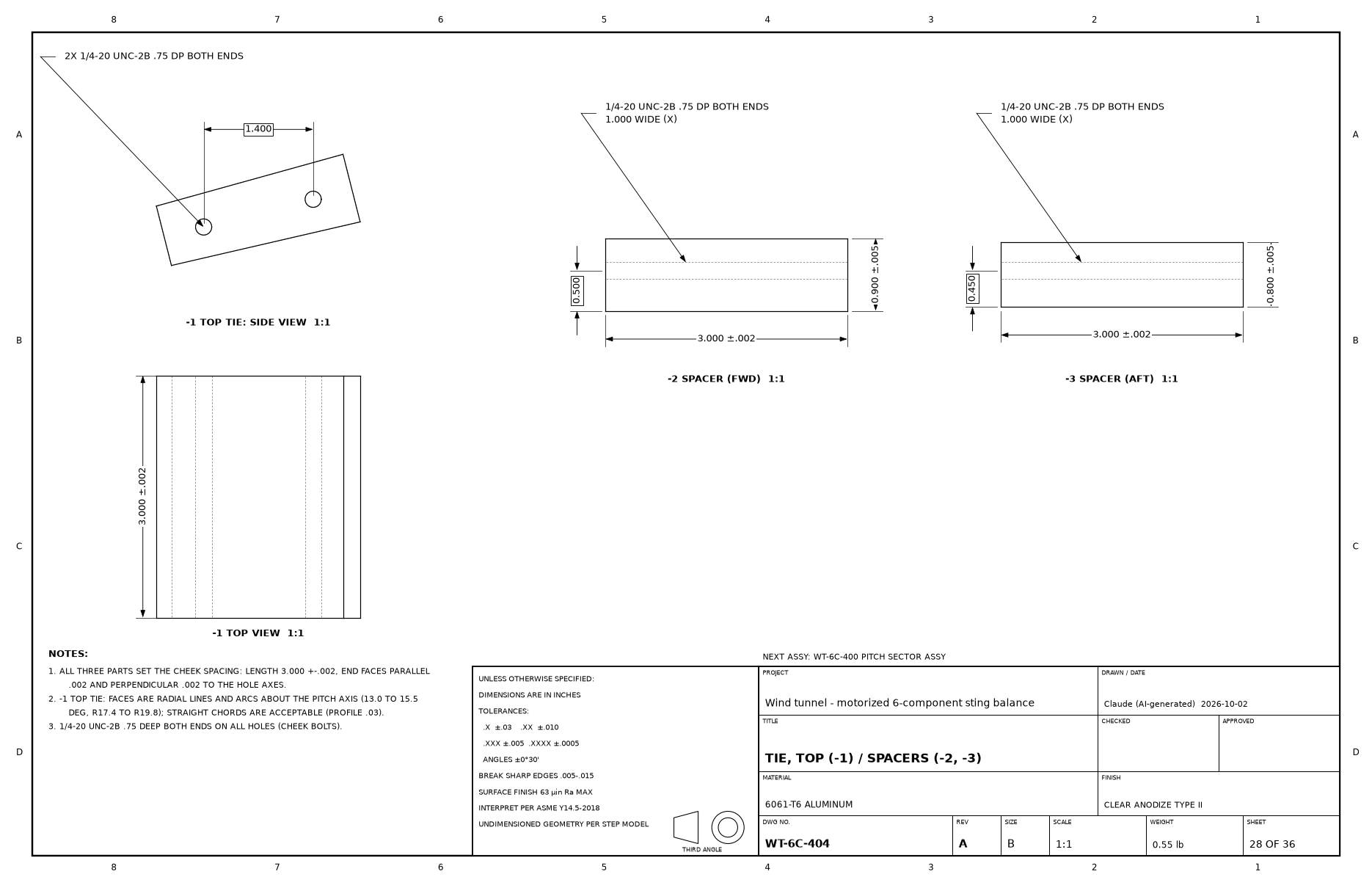

Drawing WT-6C-405

WT-6C-405

Bracket, pitch drive
6061-T6
PDF · PNG
Drawing WT-6C-406

WT-6C-406

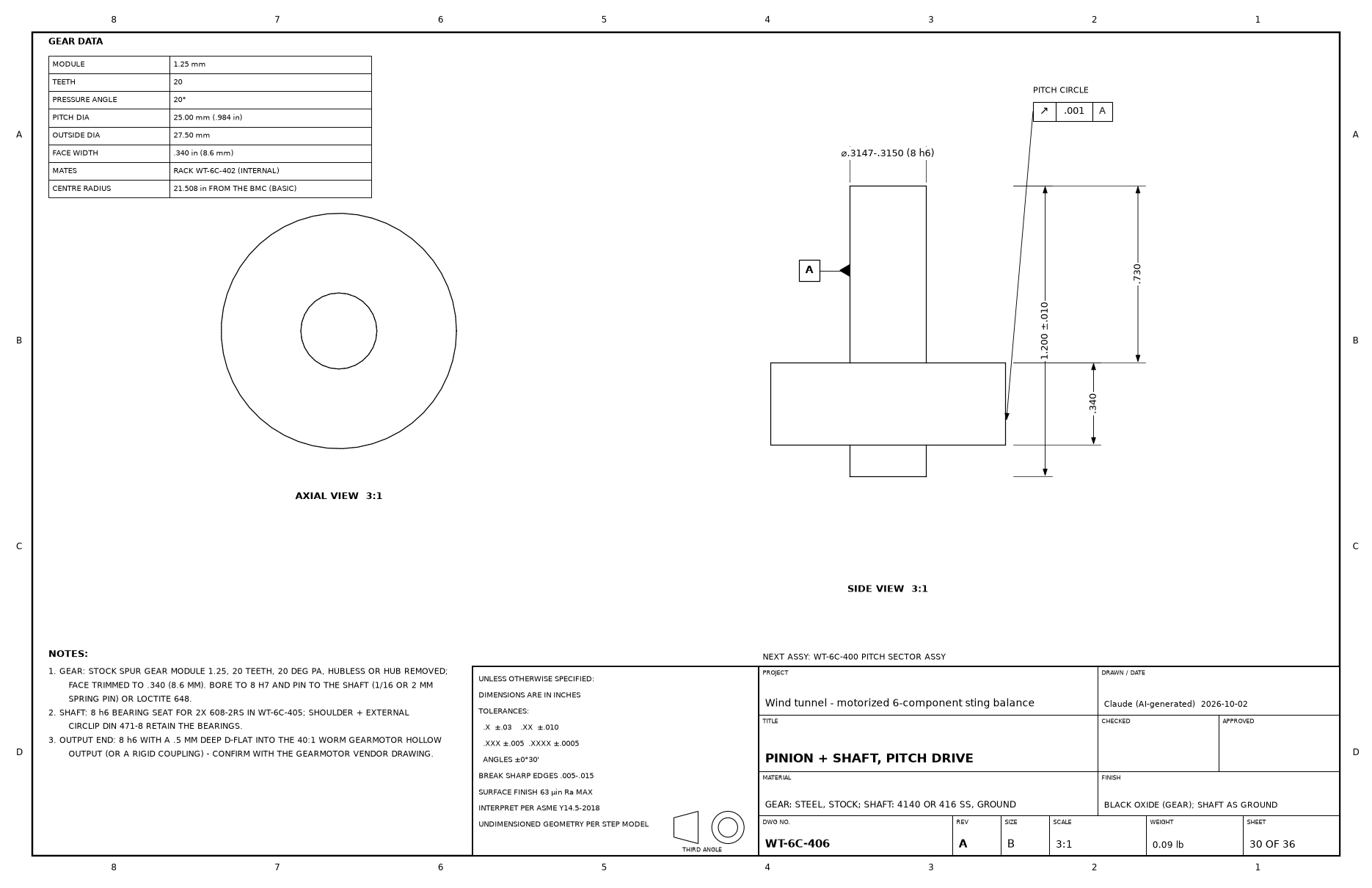

Pinion + shaft, pitch drive
steel / 4140
PDF · PNG
Drawing WT-6C-501

WT-6C-501

Rail, yaw, inner (prelim.)
6061-T6
PDF · PNG
Drawing WT-6C-502

WT-6C-502

Rail, yaw, outer (prelim.)
6061-T6
PDF · PNG
Drawing WT-6C-503

WT-6C-503

Rack, yaw, curved floor (prelim.)
6061-T6
PDF · PNG
Drawing WT-6C-504

WT-6C-504

Plate, yaw carriage (prelim.)
6061-T6
PDF · PNG
Drawing WT-6C-505

WT-6C-505

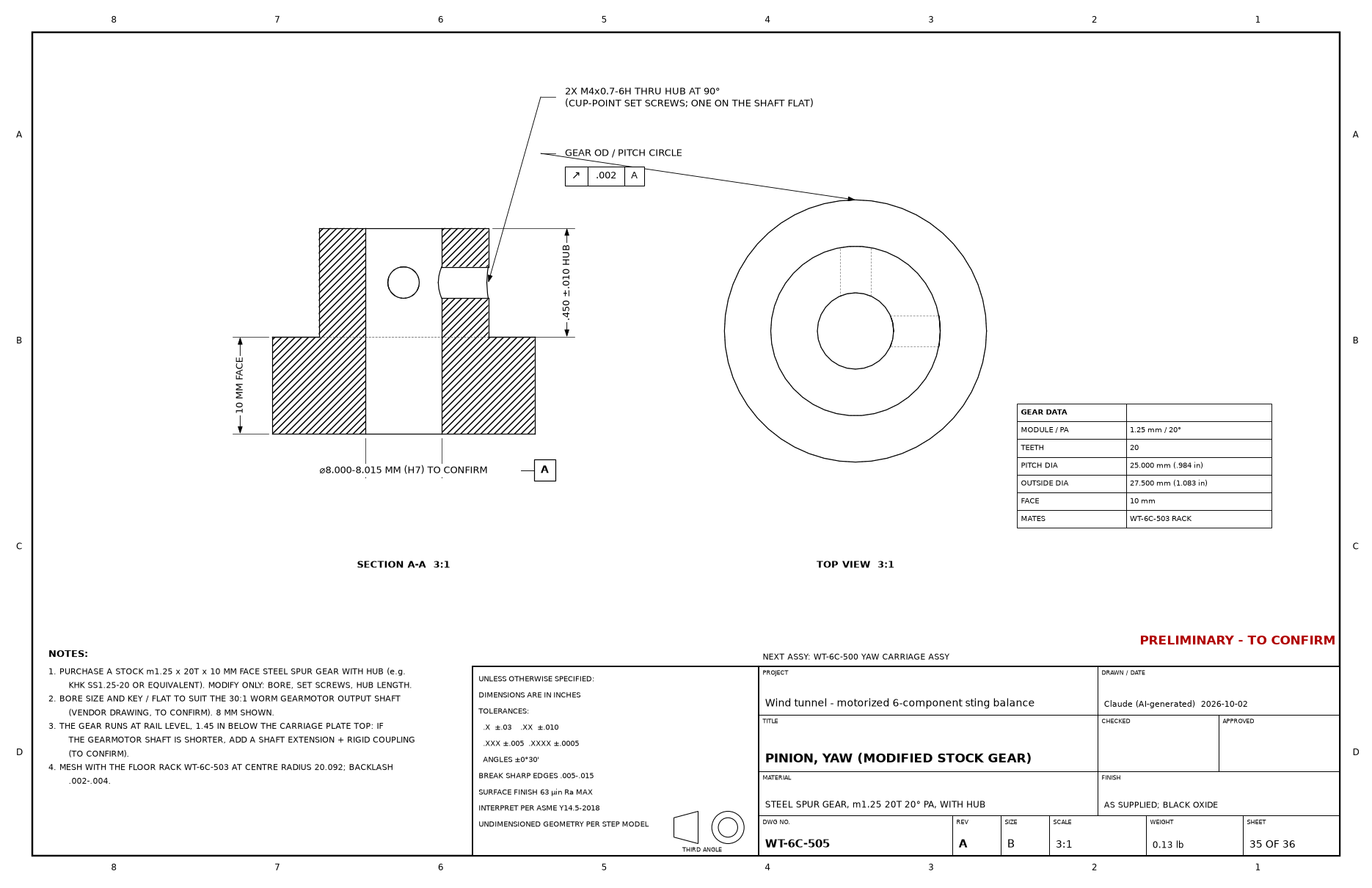

Pinion, yaw (prelim.)
steel, stock
PDF · PNG

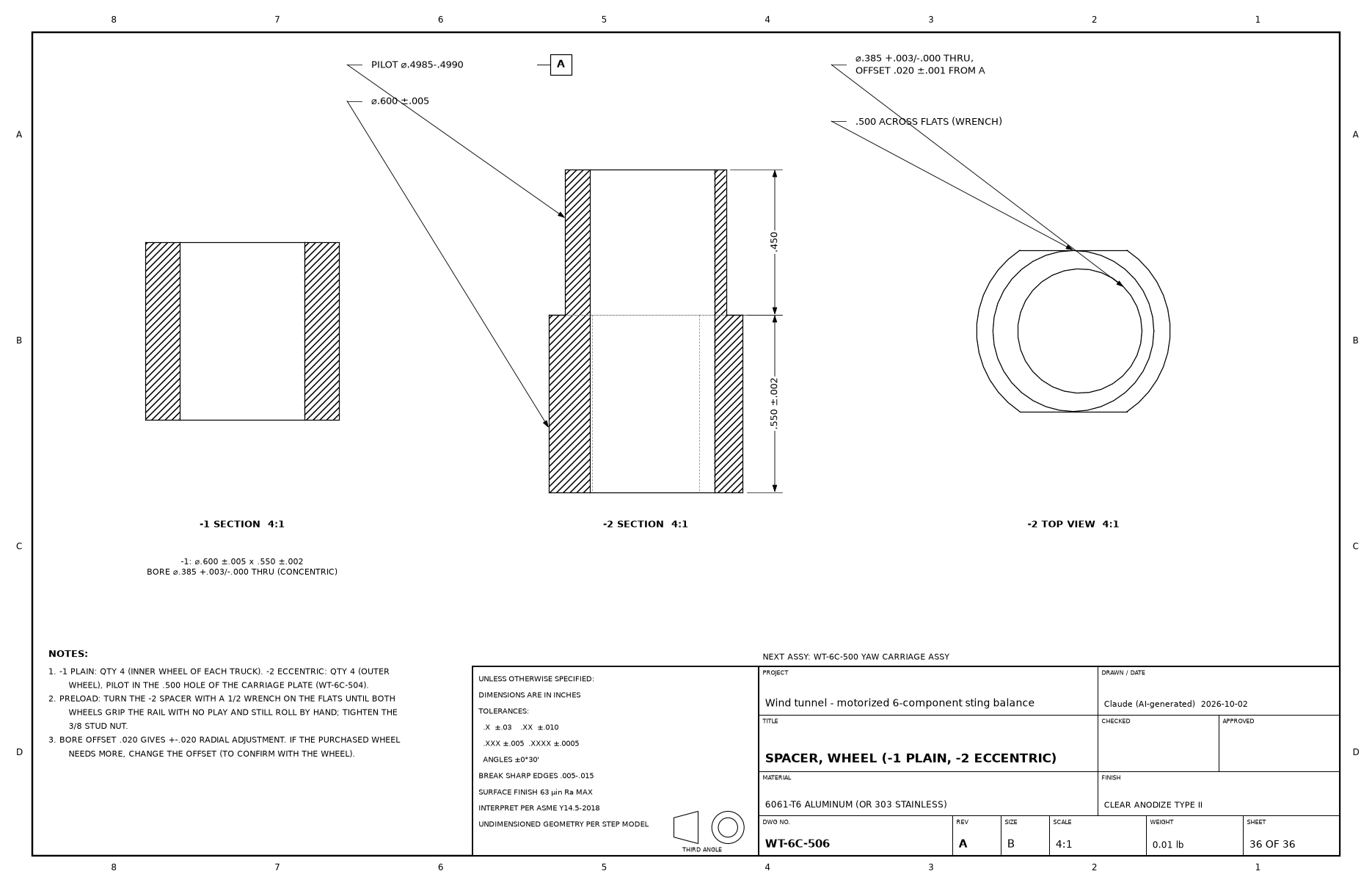

Drawing WT-6C-506

WT-6C-506

Spacers, wheel (4 + 4, prelim.)
6061-T6 (or 303 SS)
PDF · PNG

Key controls

SheetDatums and critical tolerances
WT-6C-100..500 assembliesCAD render + parts list (drawing numbers, bought parts, quantities) + assembly notes
WT-6C-004 pod (3D printed)bore Ø1.705 +.004 puck fit (A); 4 screw holes at 45°; base taps on Ø1.288; channel keep-out angles; blow-through inspection

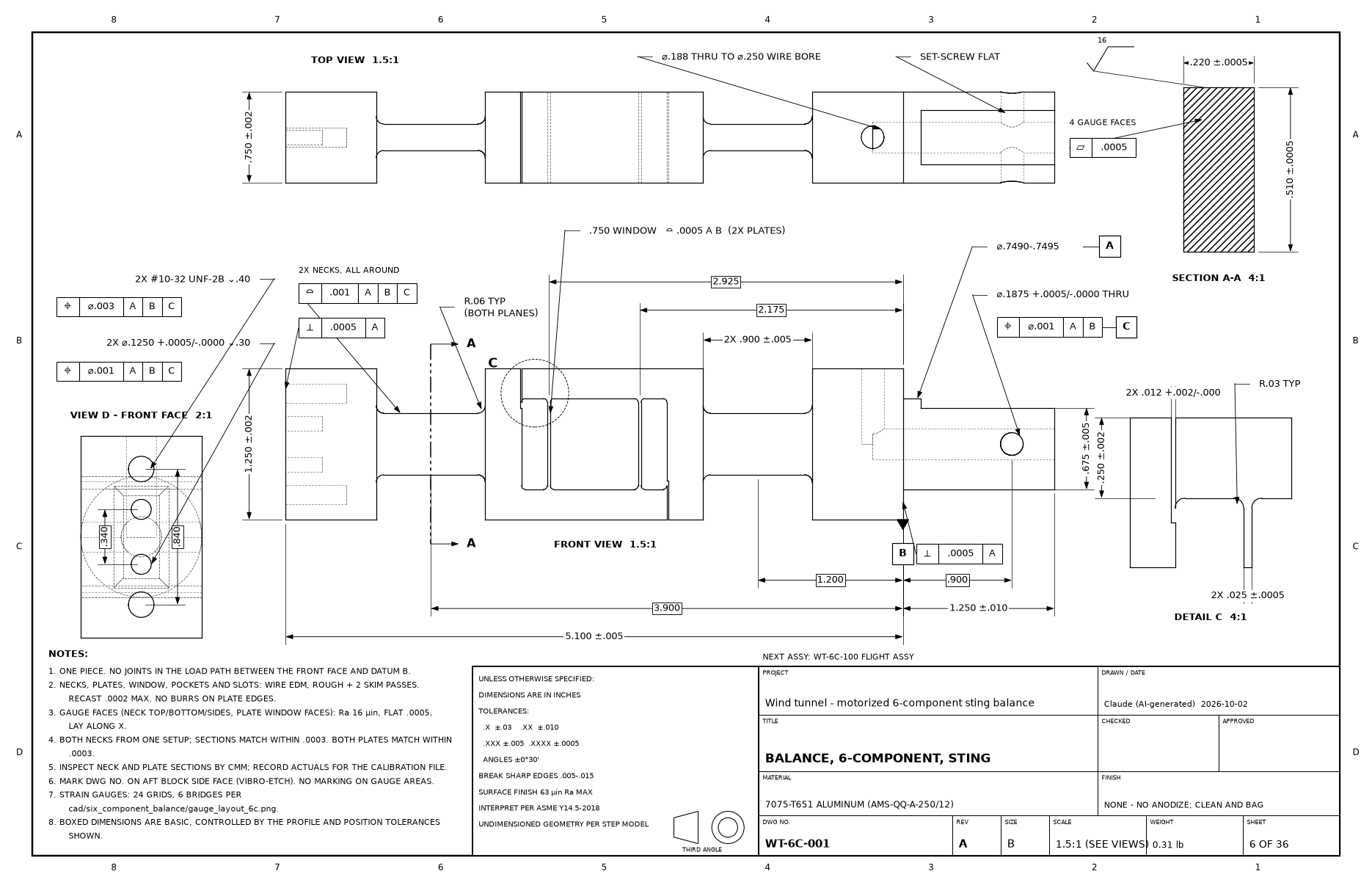

WT-6C-001 balanceA spigot axis, B shoulder, C cross pin; necks 0.220/0.510 ±0.0005 with profile 0.001; plates 0.025 ±0.0005; gauge faces flat 0.0005, Ra 16

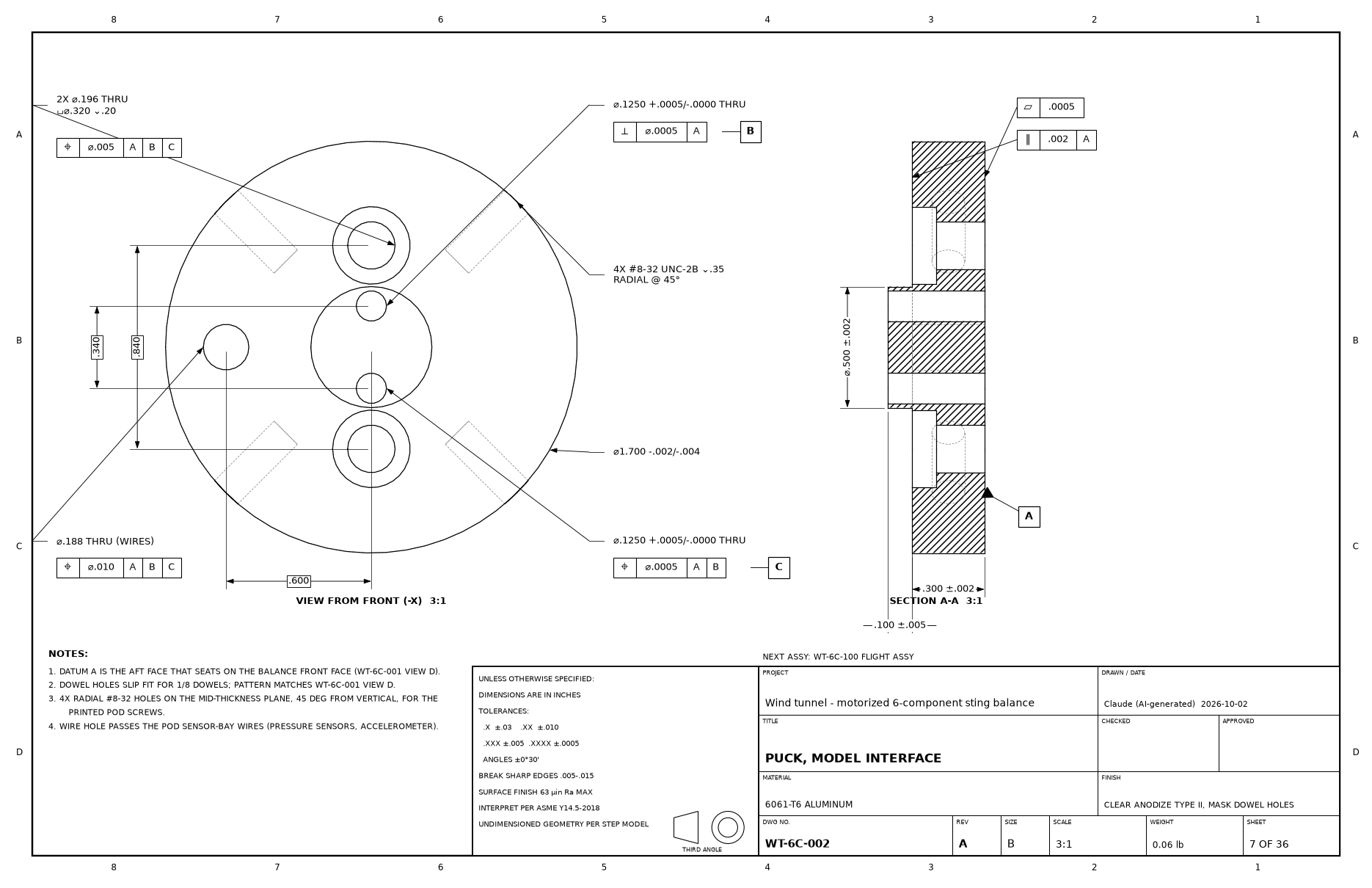

WT-6C-002 puckA aft face (flat 0.0005), B/C dowel holes
WT-6C-003 stingA OD (straightness 0.002); socket runout 0.001; flats 0.700 ±0.001

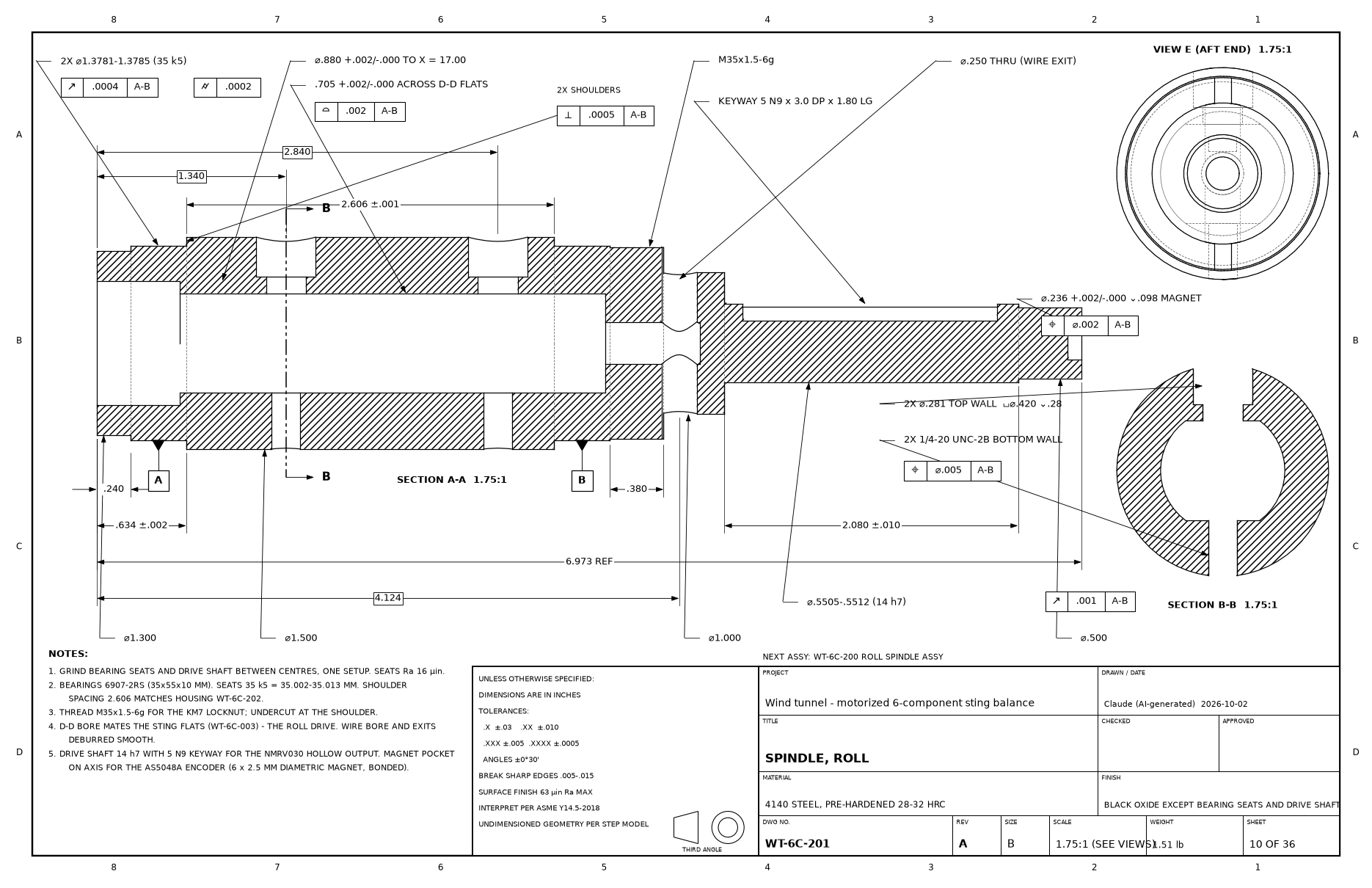

WT-6C-201 spindleA-B bearing seats 35 k5 (runout 0.0004, cylindricity 0.0002); shoulders perpendicular 0.0005; 14 h7 drive

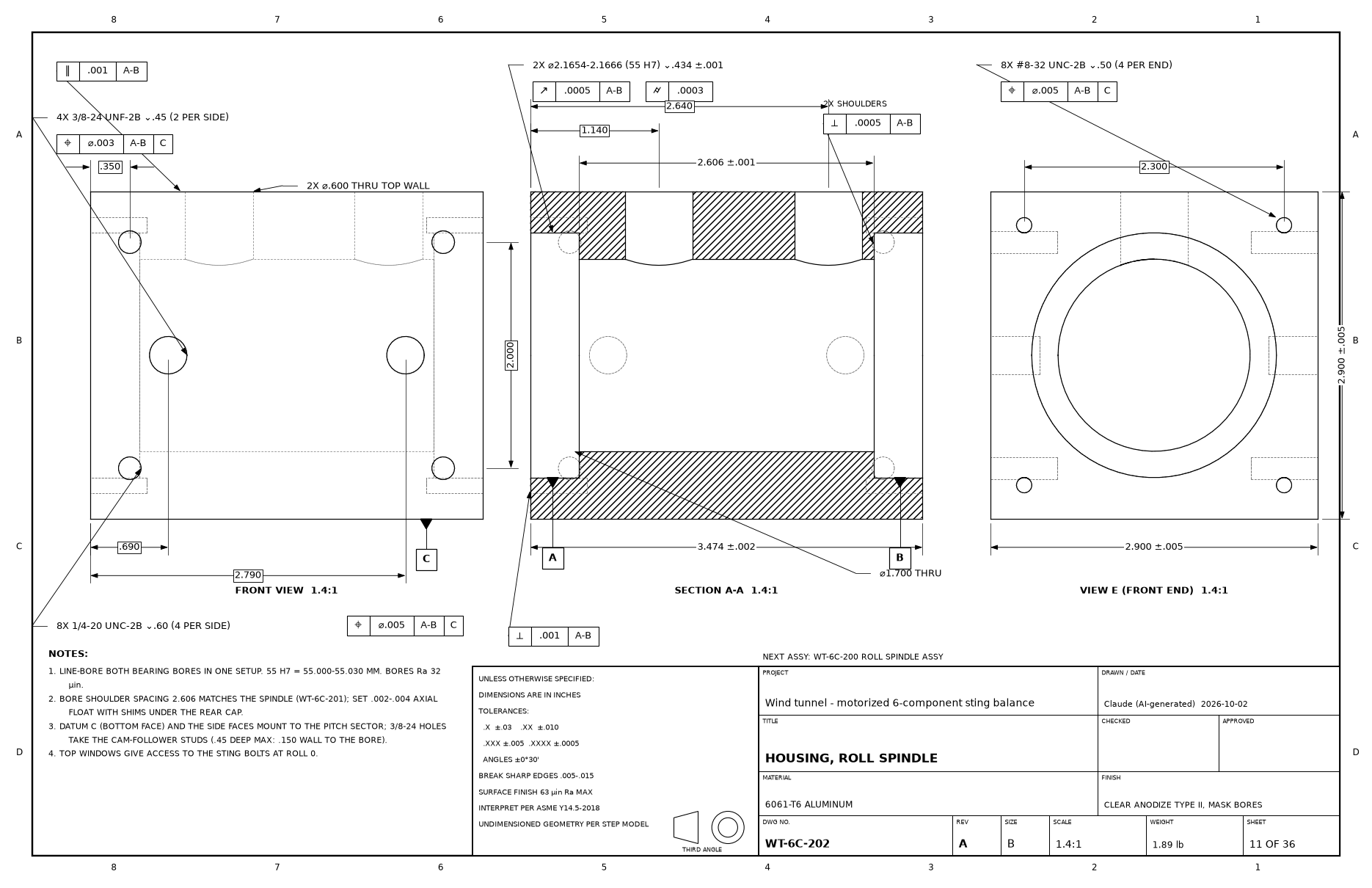

WT-6C-202 housingA-B bores 55 H7 line-bored (runout 0.0005); shoulder spacing 2.606 ±0.001; C bottom face
WT-6C-203 capspilot lip Ø2.1640-2.1645; lip height 0.040 +0.000/-0.001 (bearing clamp)

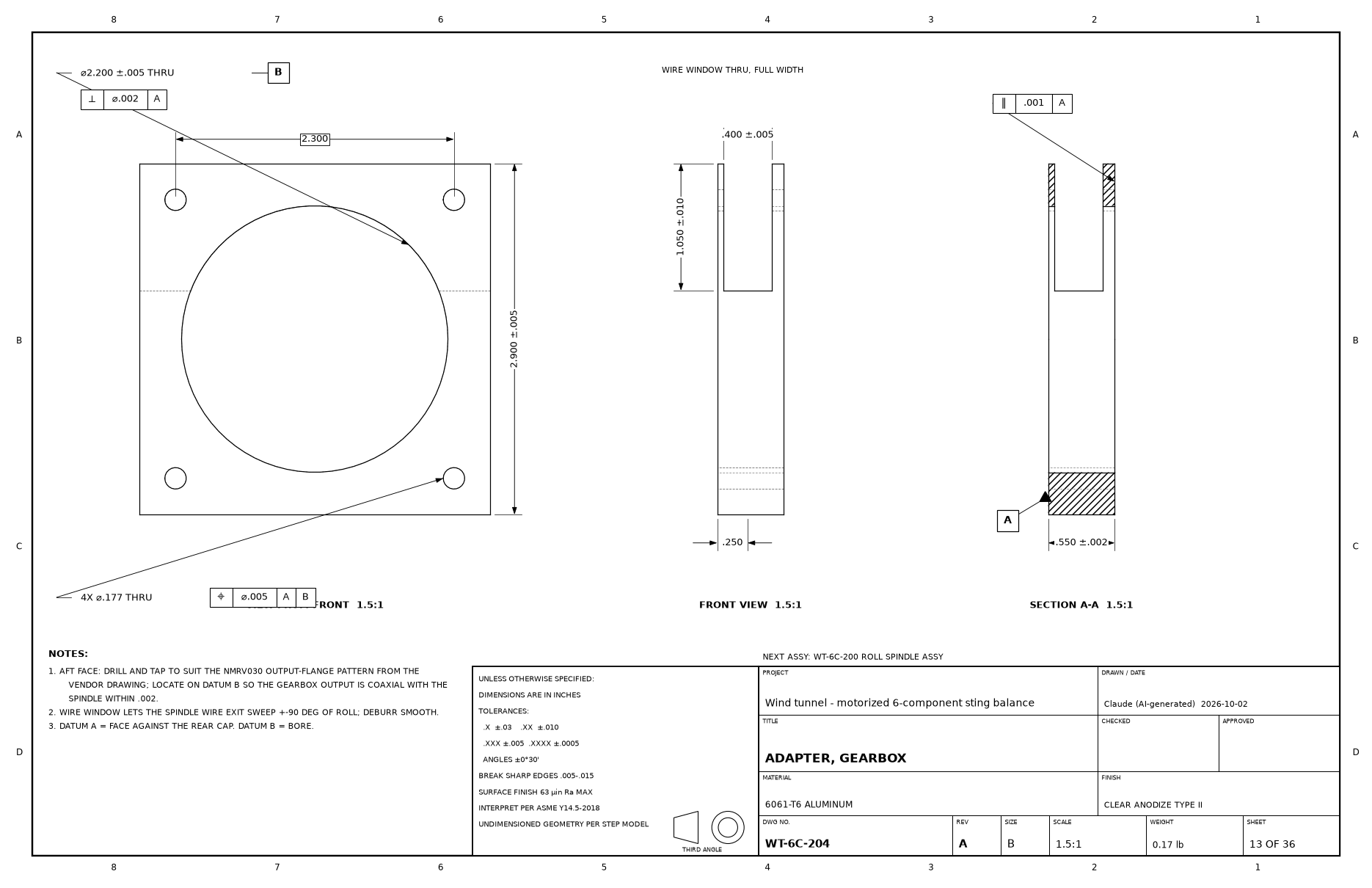

WT-6C-204 adapterfaces parallel 0.001; gearbox pattern per vendor

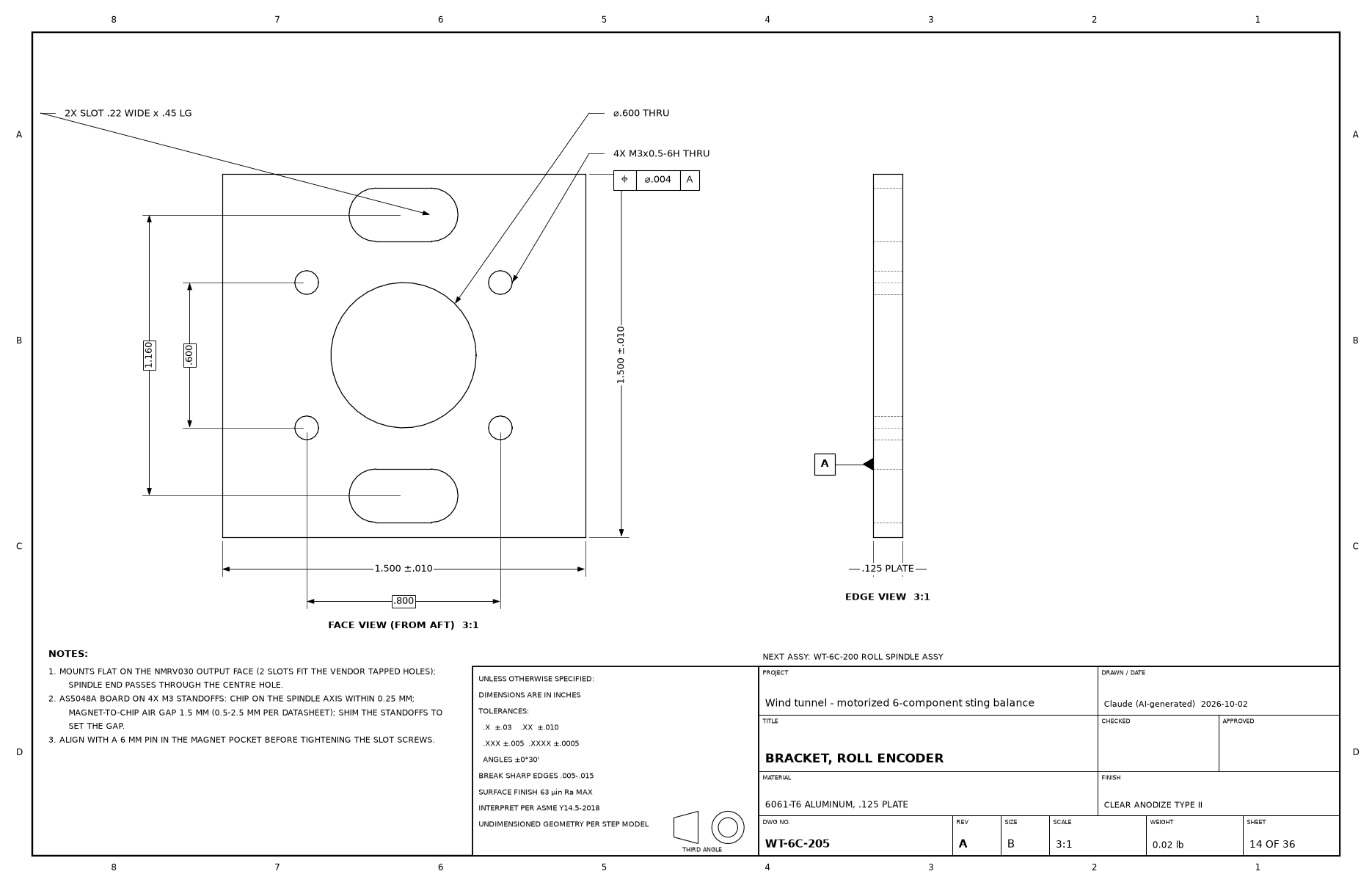

WT-6C-205 encoder bracketAS5048A on the spindle axis within 0.25 mm, 1.5 mm air gap

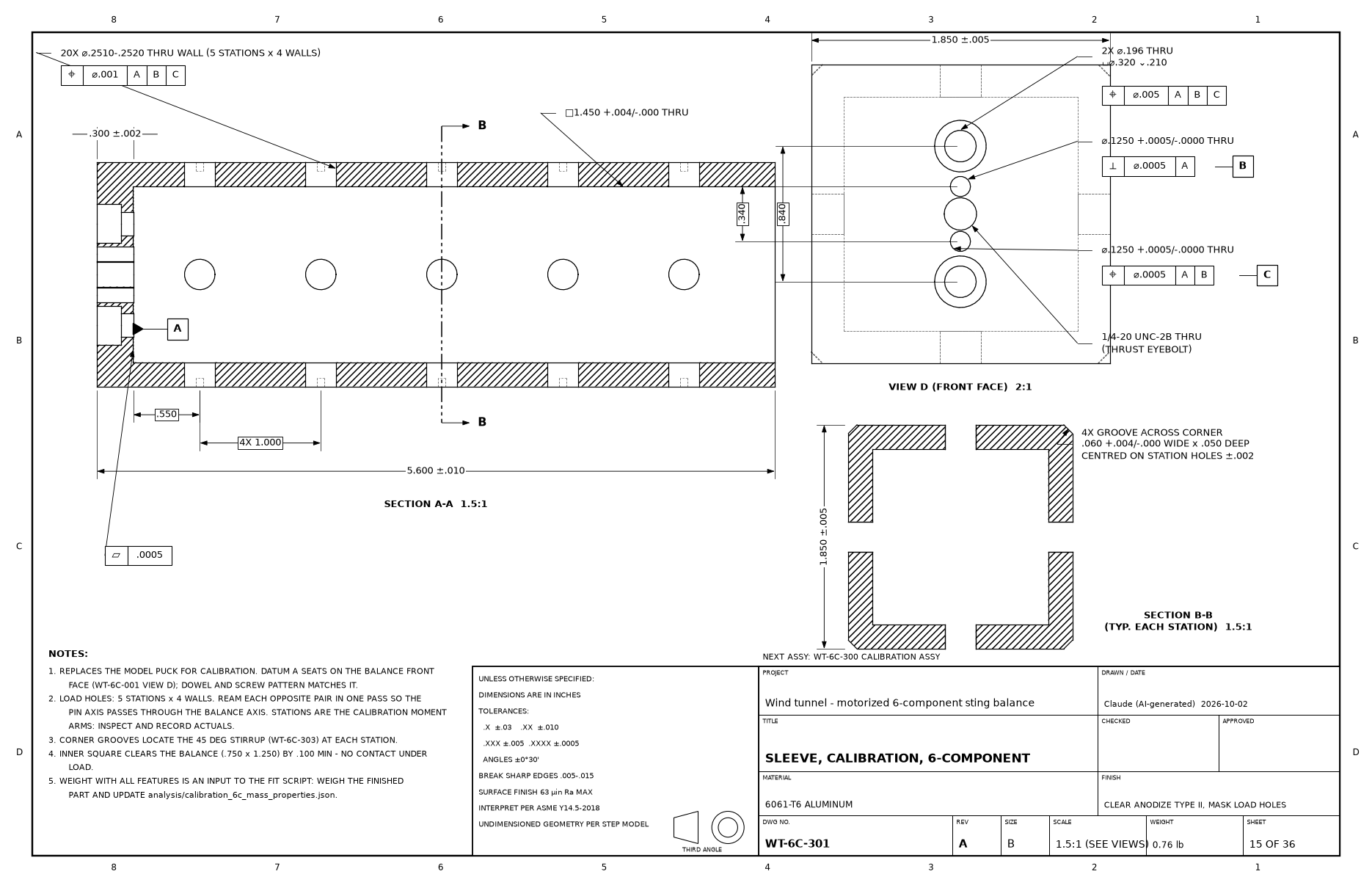

WT-6C-301 calibration sleeveA face on the balance, B/C dowels; 20 load holes Ø.2510-.2520 at basic 1.000 in stations (position 0.001); corner grooves for the stirrup

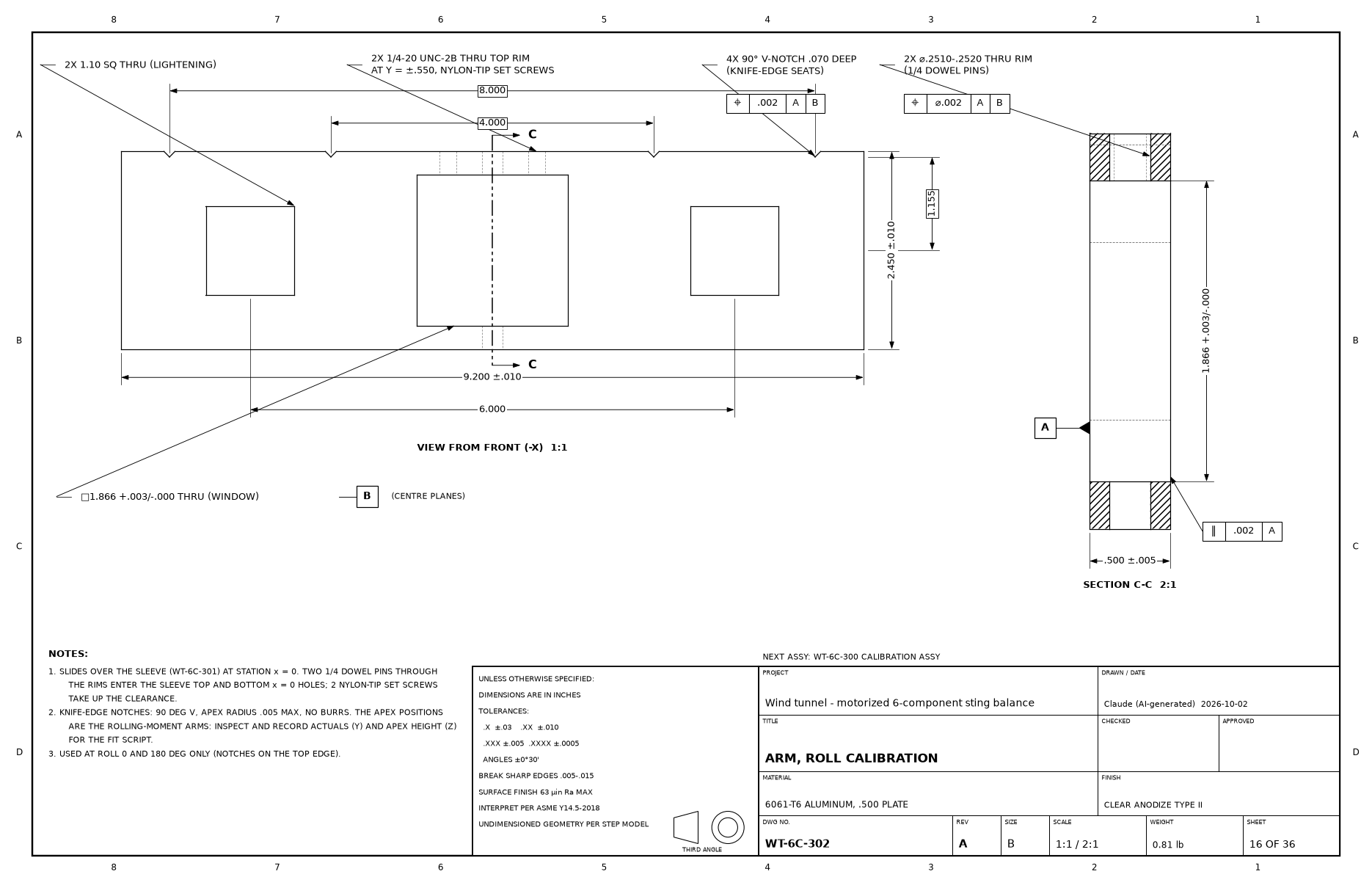

WT-6C-302 roll armwindow 1.866 SQ (B); 4 knife-edge notches at basic ±2.000 / ±4.000 in, apex 1.155 in (position 0.002)

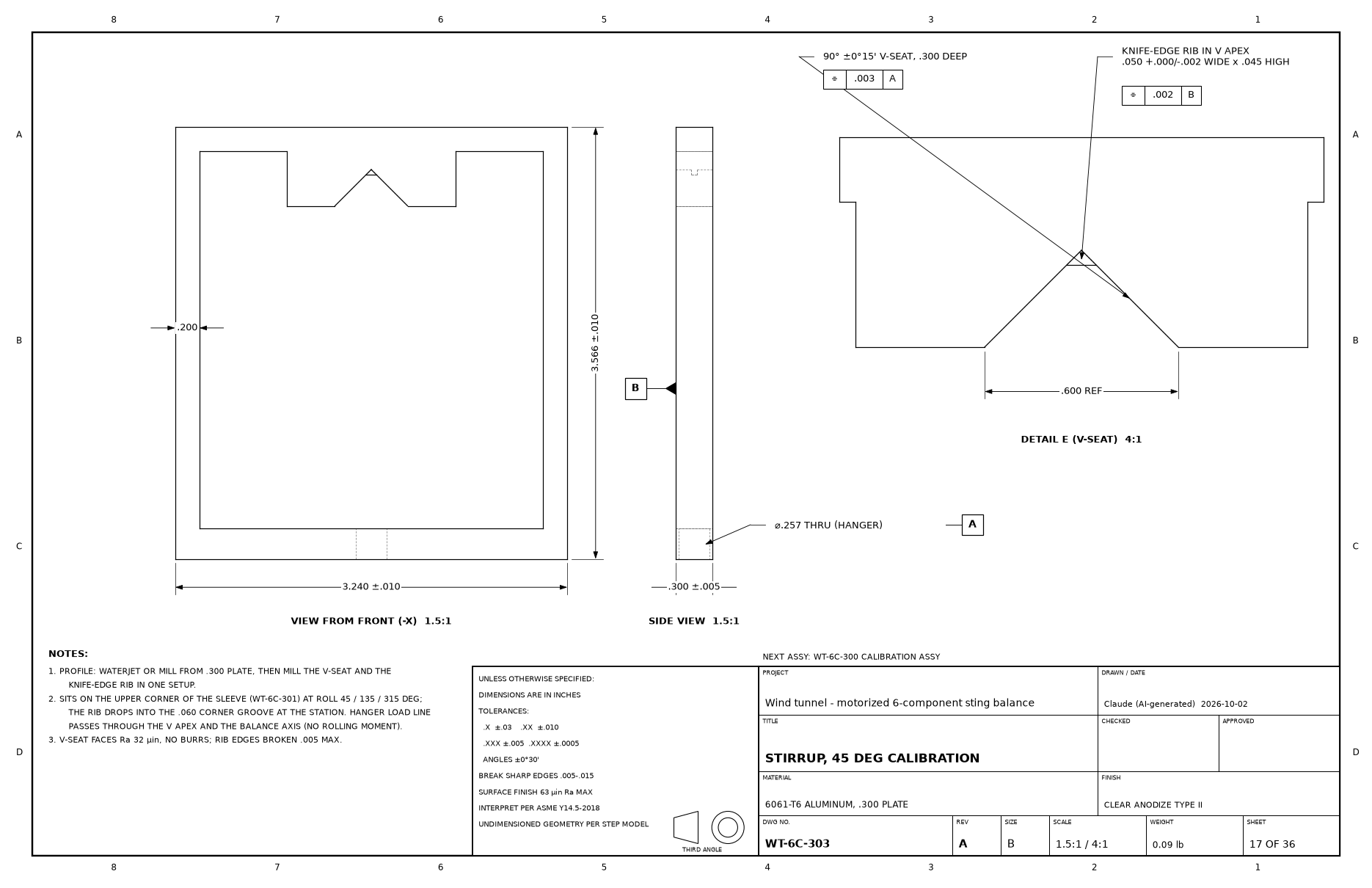

WT-6C-303 stirrup90° V-seat 0.30 deep, symmetric 0.003 to the hanger hole; 0.050 knife-edge rib
WT-6C-304 yokepin holes coaxial (A); hanger hole position 0.005 to A
WT-6C-305 head platepivot Ø.380 (B) perpendicular 0.002 to A; leveling slot position 0.003

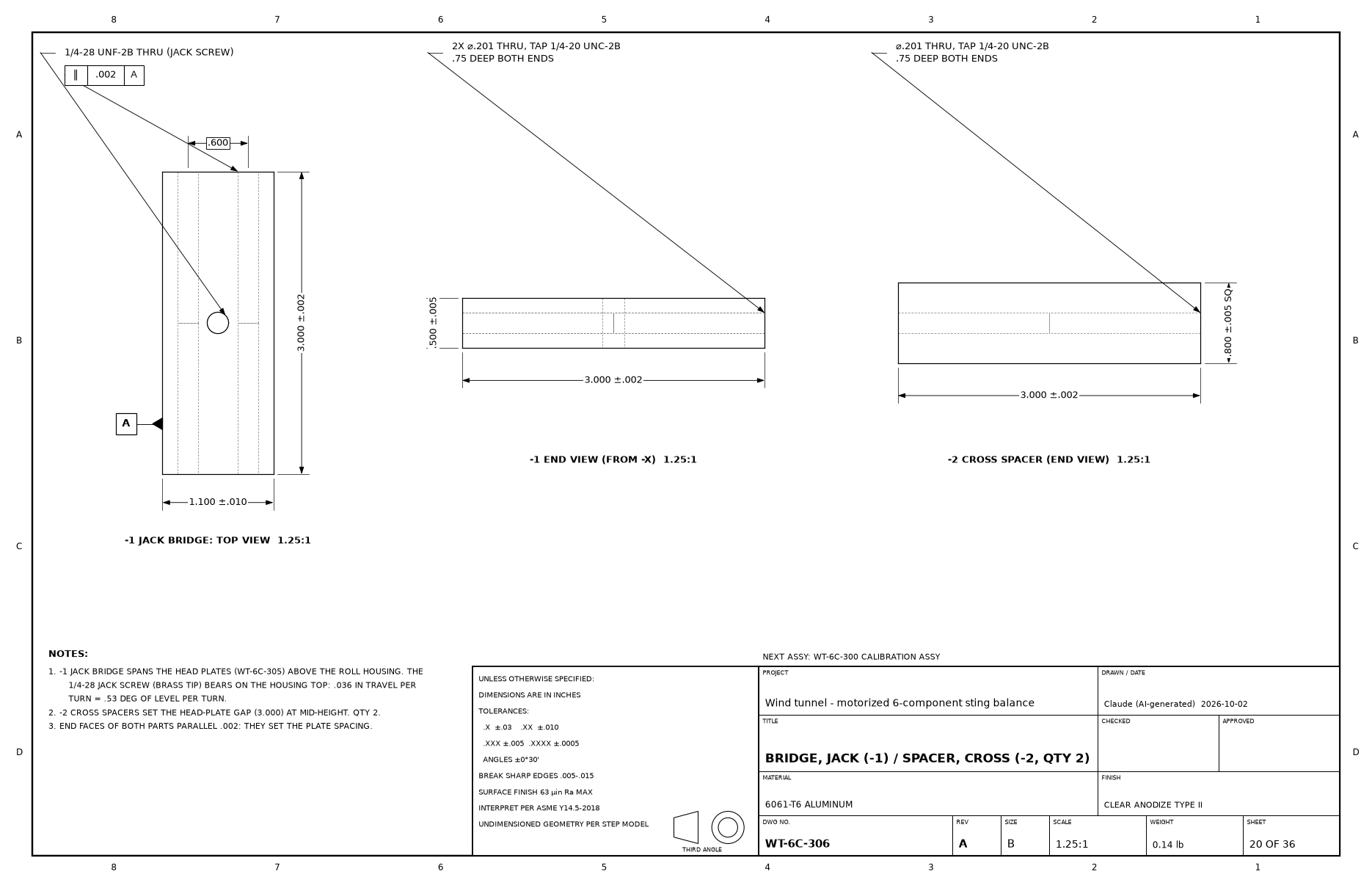

WT-6C-306 jack bridge / spacer3.000 ±0.002 plate spacing; ends parallel 0.002
WT-6C-307 base tubehole table from the aft end and bottom face

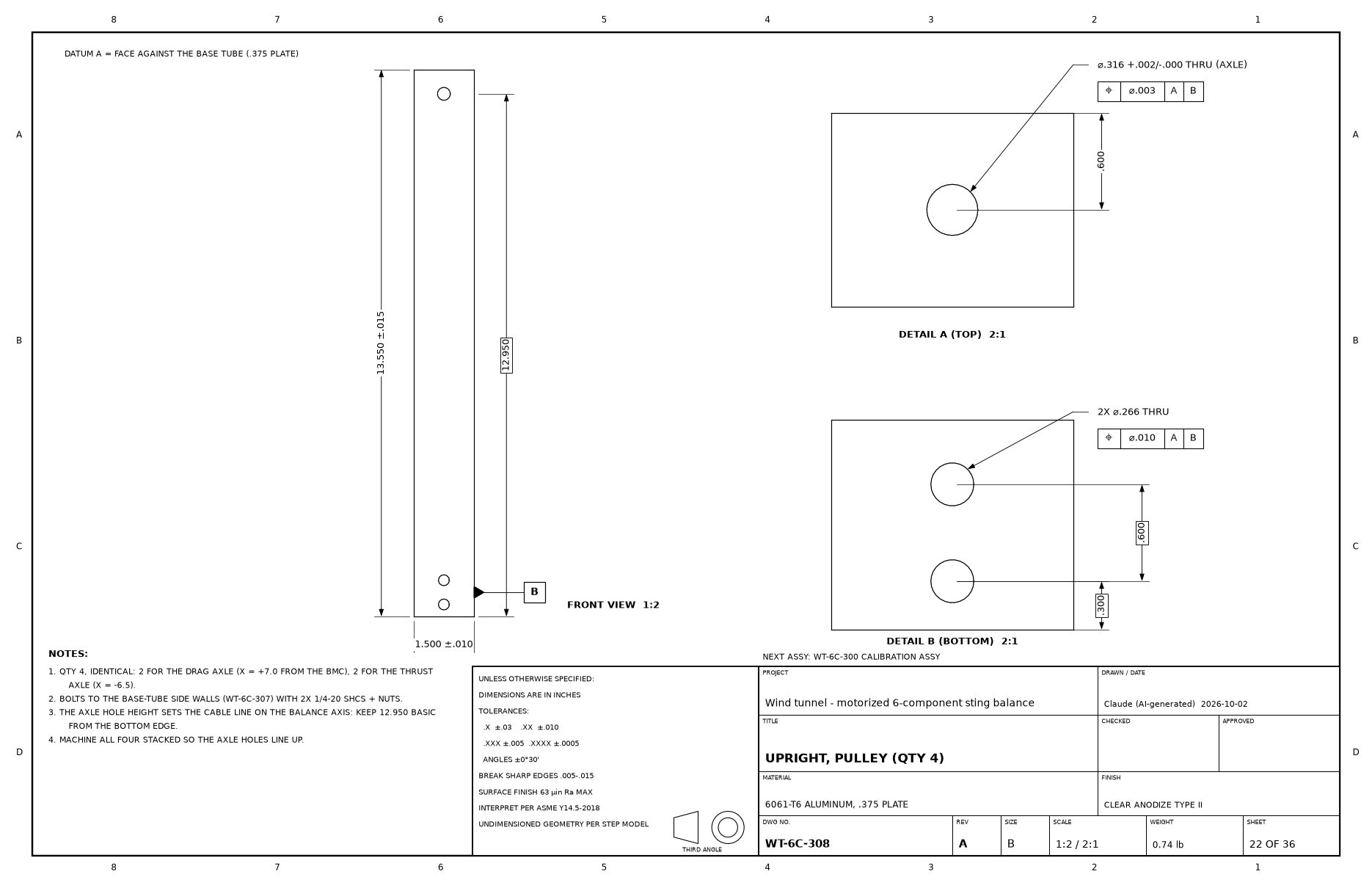

WT-6C-308 upright (qty 4)axle hole Ø.316 at 12.950 basic from the bottom edge: sets the cable line on the balance axis

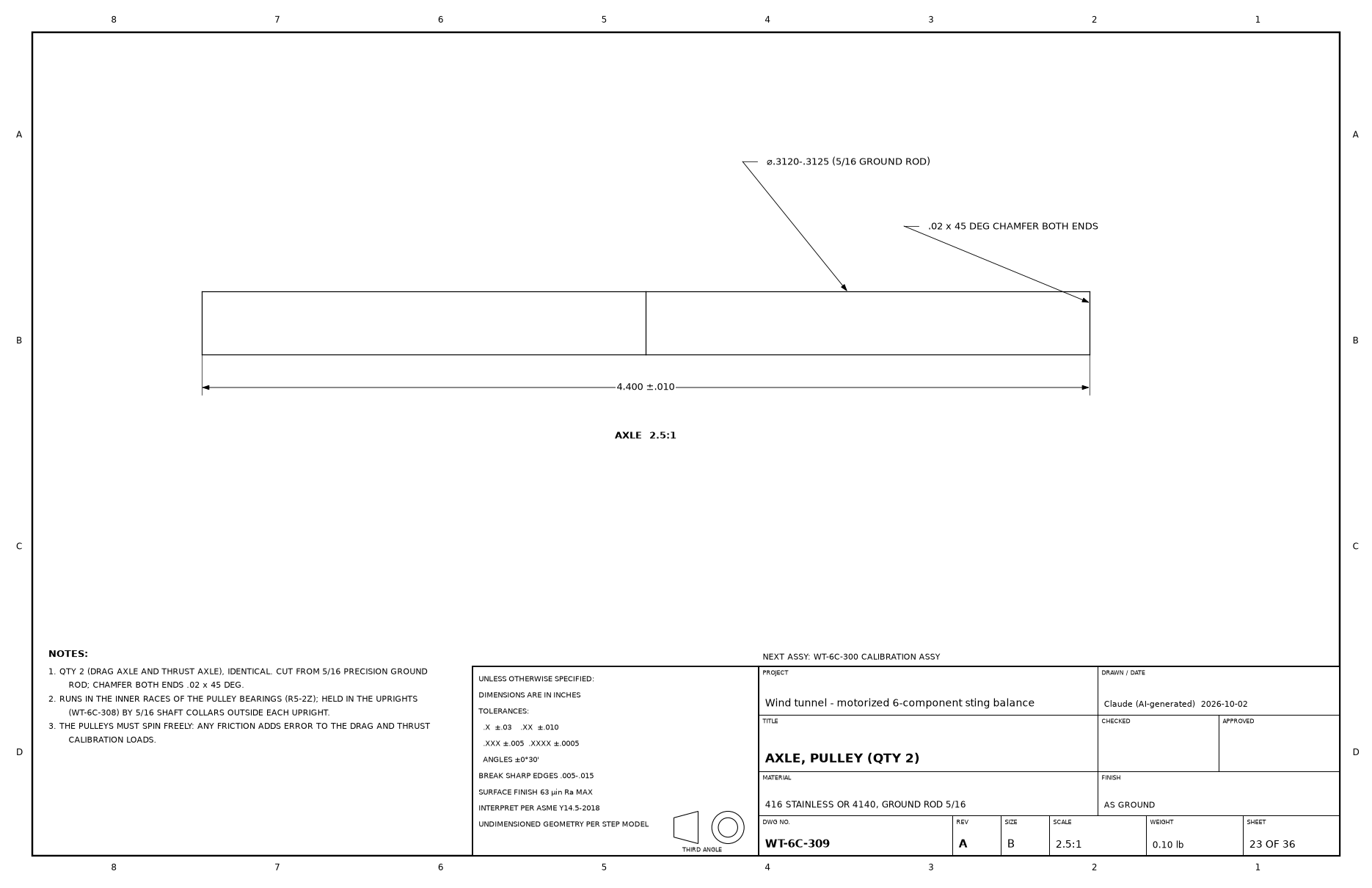

WT-6C-309 axle (qty 2)5/16 ground rod, Ø.3120-.3125, held by shaft collars
WT-6C-310 pulley (qty 3)bore Ø.4995-.5000 for one R5-2Z bearing; groove bottom R .900; runout .002
WT-6C-401 cheek (qty 2)track slots 0.752 +.002/-.000 on R17.300 / R19.400 basic about the pitch axis, profile 0.002; pitch axis 9.100 above the bottom edge
WT-6C-402 rack plateinternal arc rack, module 1.25, pitch radius 22.000 basic about the pitch axis; wire EDM teeth

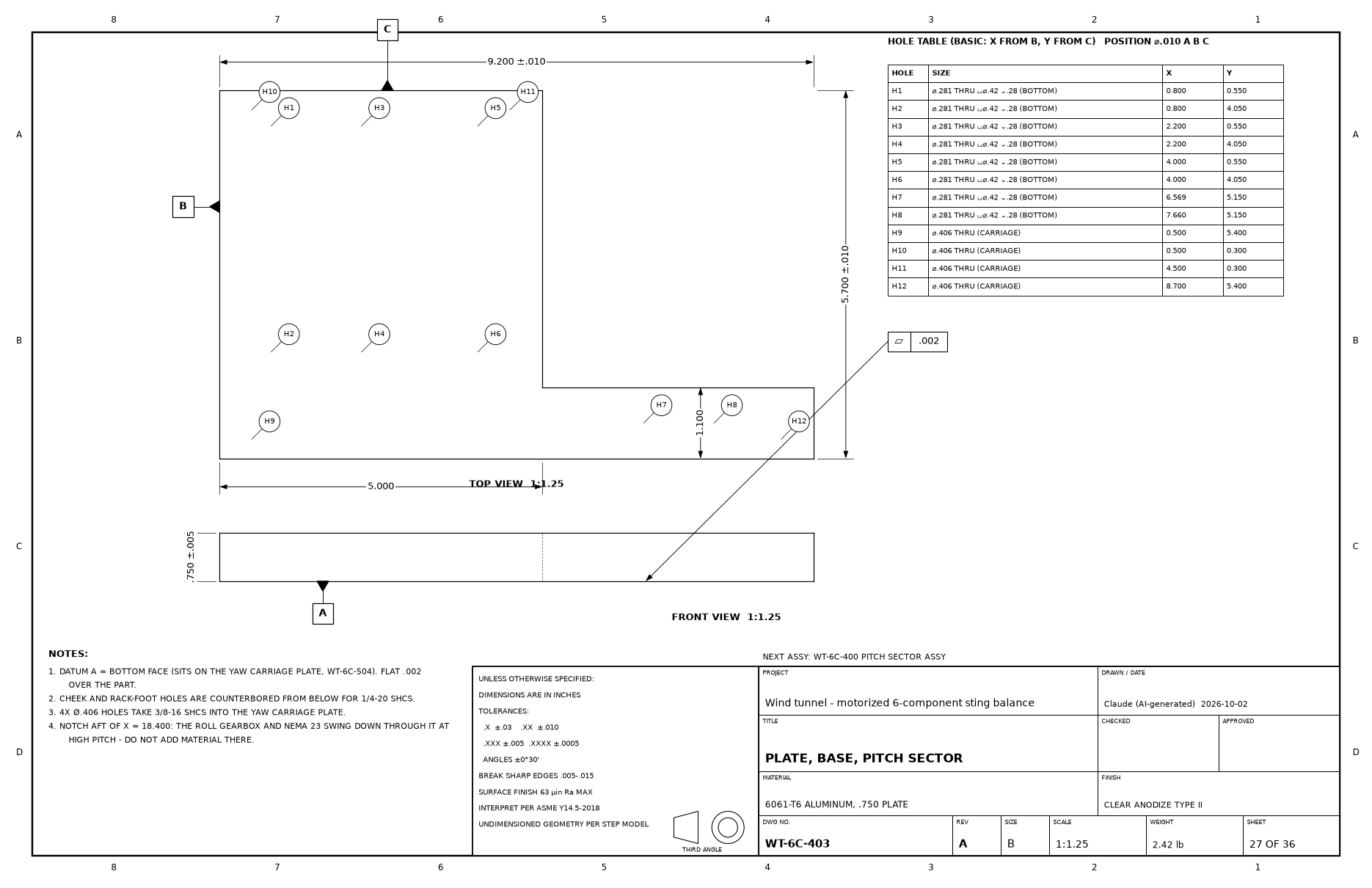

WT-6C-403 base platebottom face flat 0.002; hole table for cheeks, rack foot and yaw carriage
WT-6C-404 tie / spacerslength 3.000 ±0.002 sets the cheek spacing; ends parallel 0.002

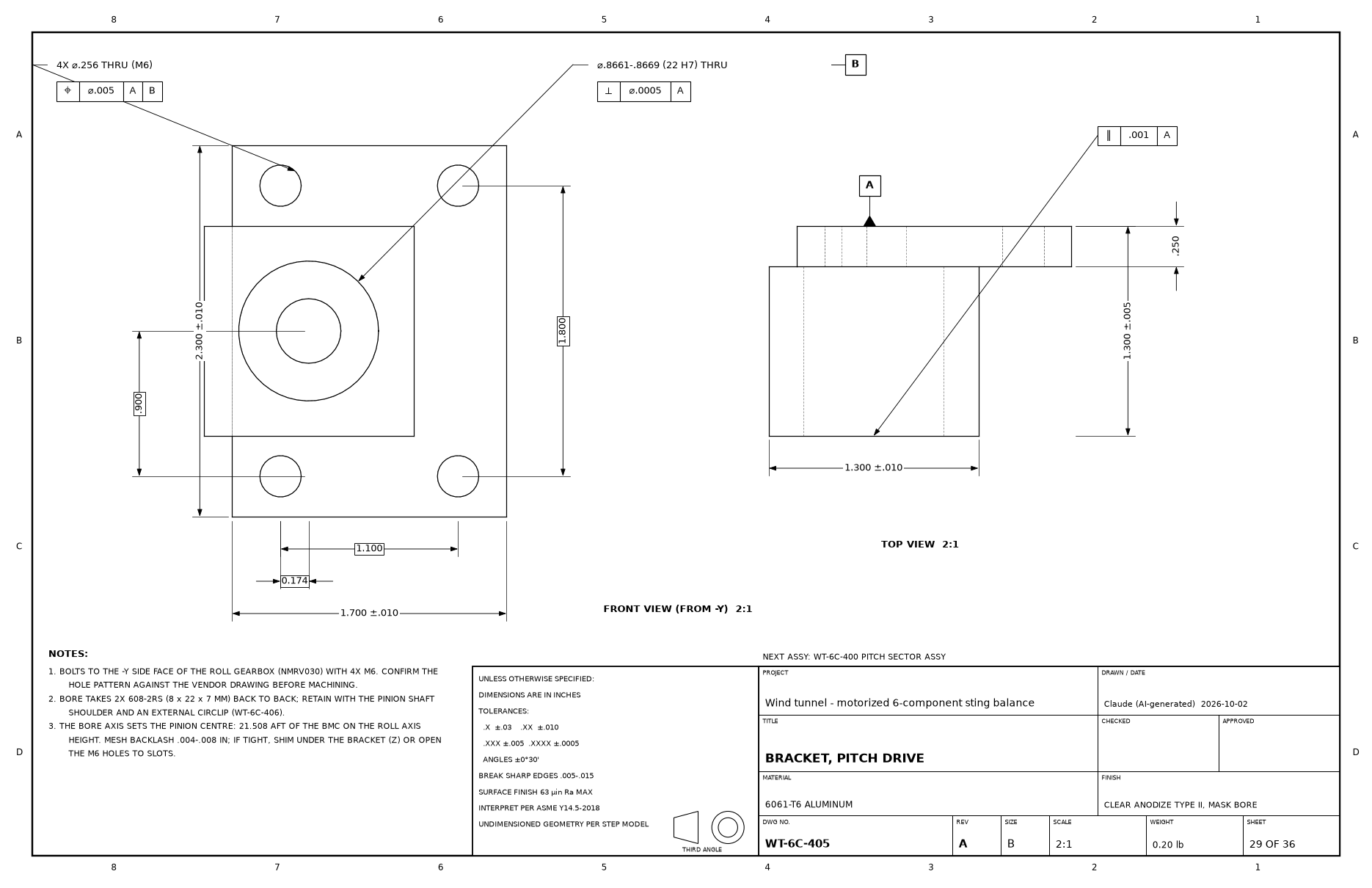

WT-6C-405 drive bracket22 H7 bearing bore perpendicular 0.0005 to the gearbox face; M6 pattern to confirm with the vendor
WT-6C-406 pinion + shaftstock m1.25 20T gear on an 8 h6 shaft; runout 0.001

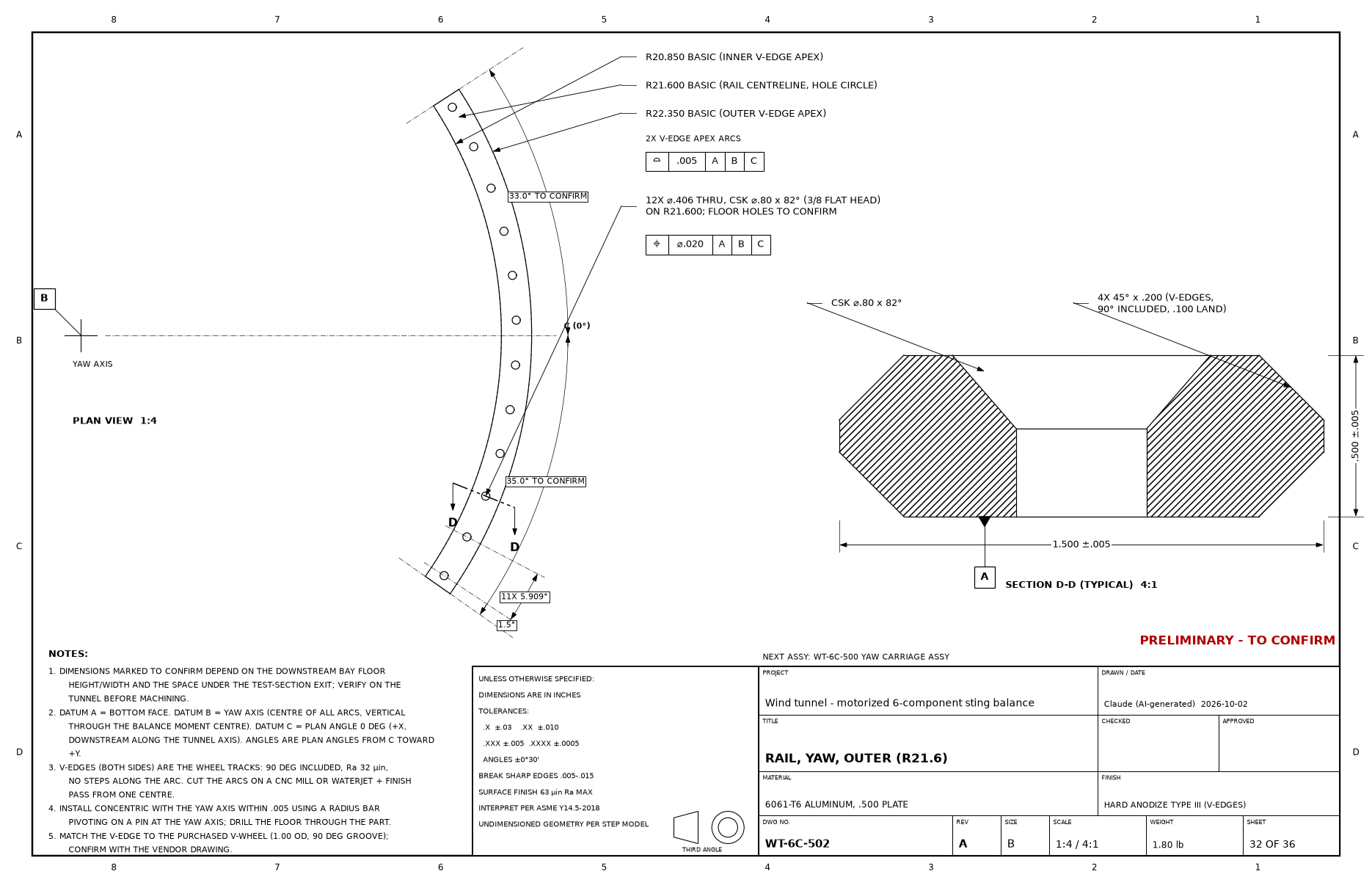

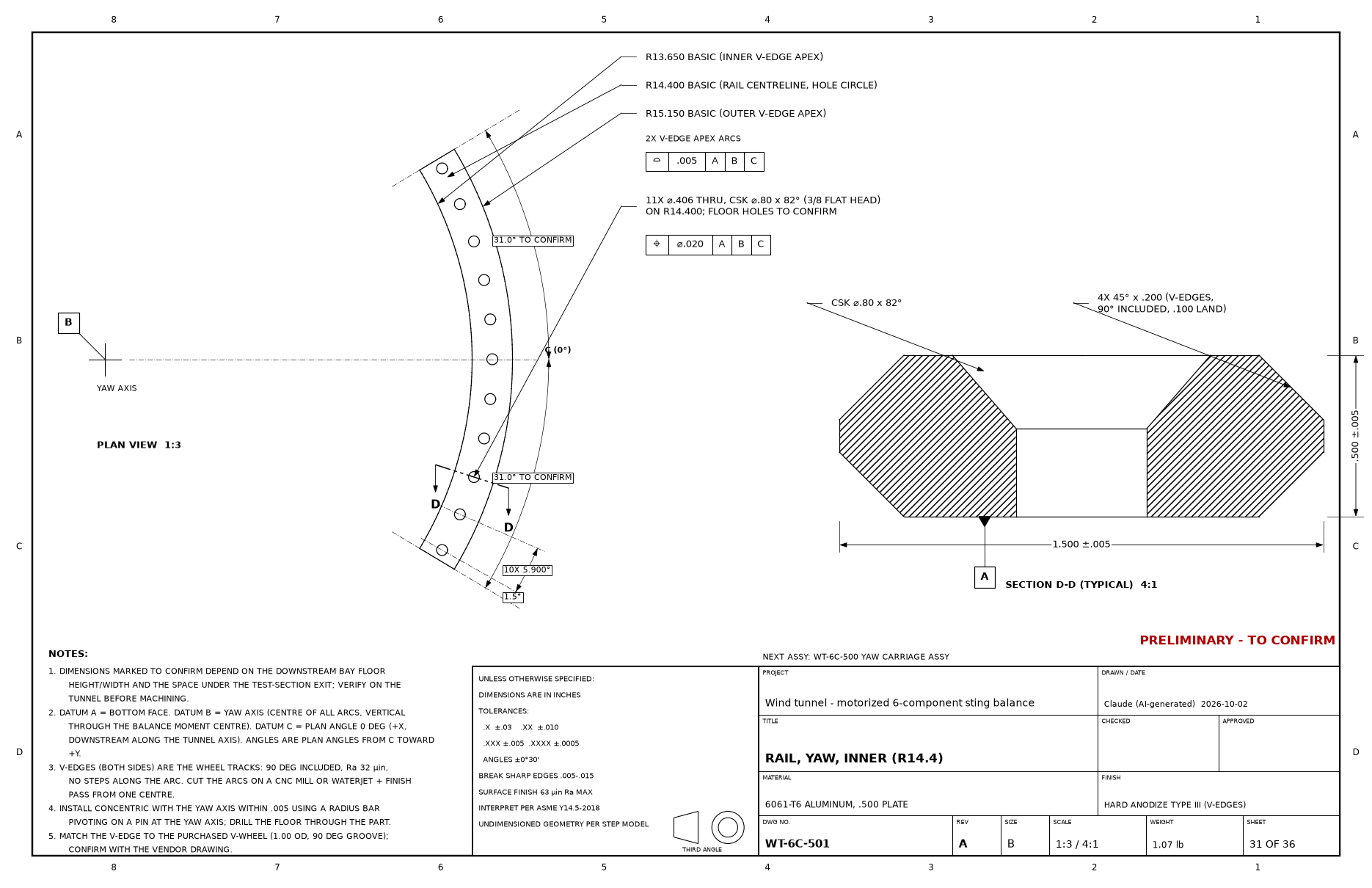

WT-6C-501/502 railsV-edge apex arcs about the yaw axis, profile 0.005; extents and floor holes TO CONFIRM

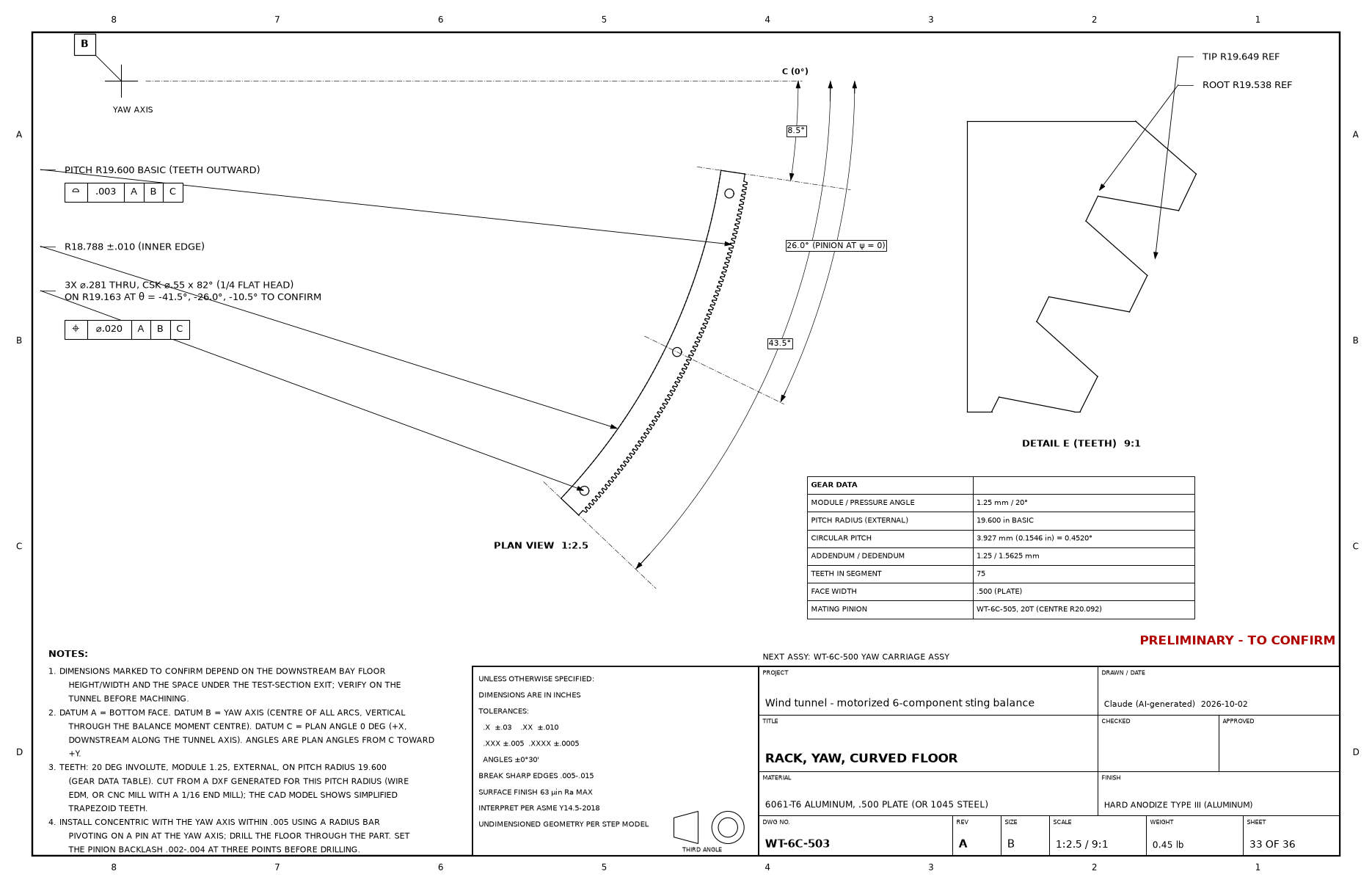

WT-6C-503 yaw rackexternal arc rack, module 1.25, pitch radius 19.6 about the yaw axis

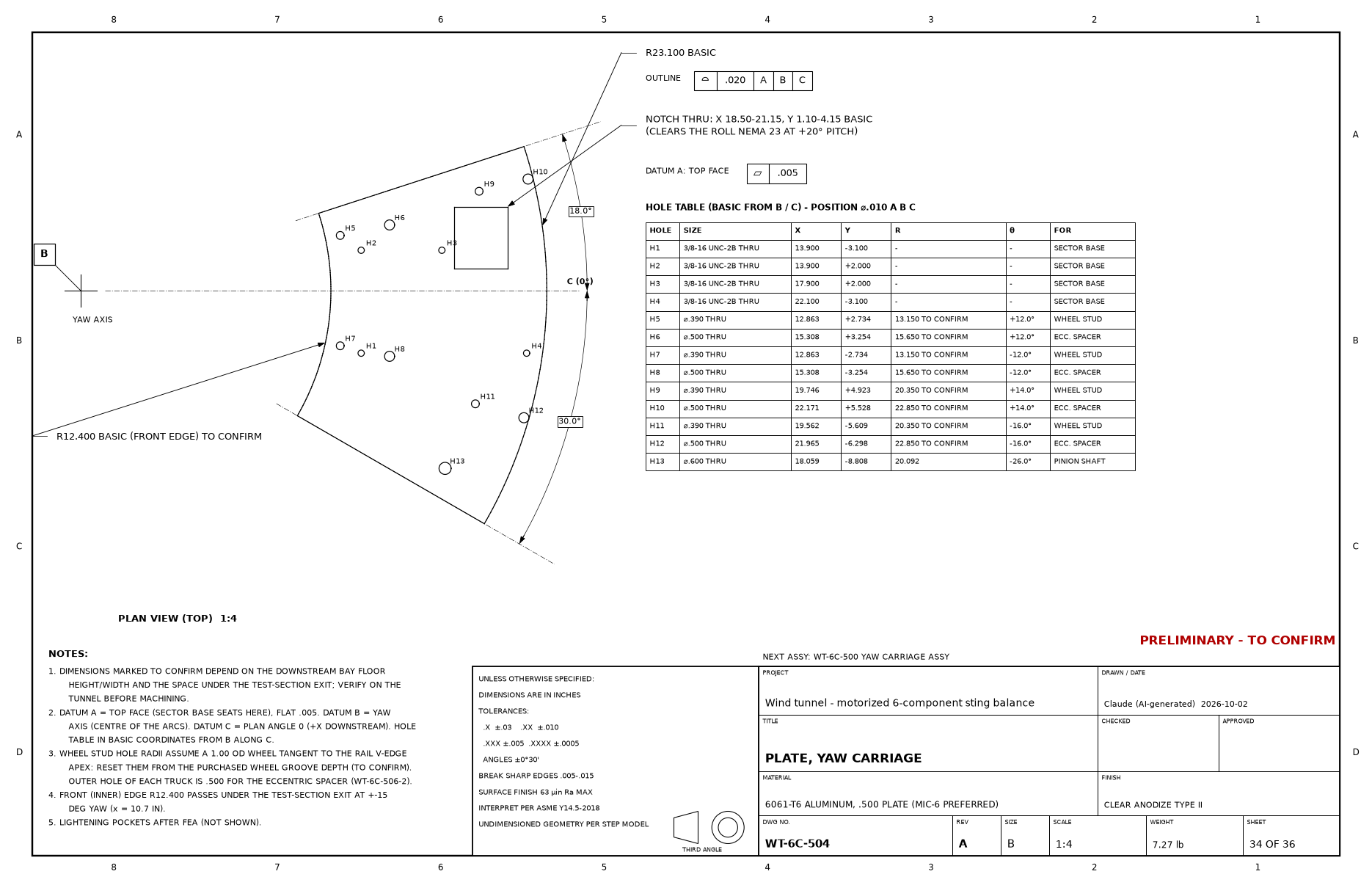

WT-6C-504 carriage platetop face flat 0.005; hole table; front edge R12.400 TO CONFIRM
WT-6C-505/506 pinion, spacersmodified stock gear; plain and eccentric wheel spacers (preload)
